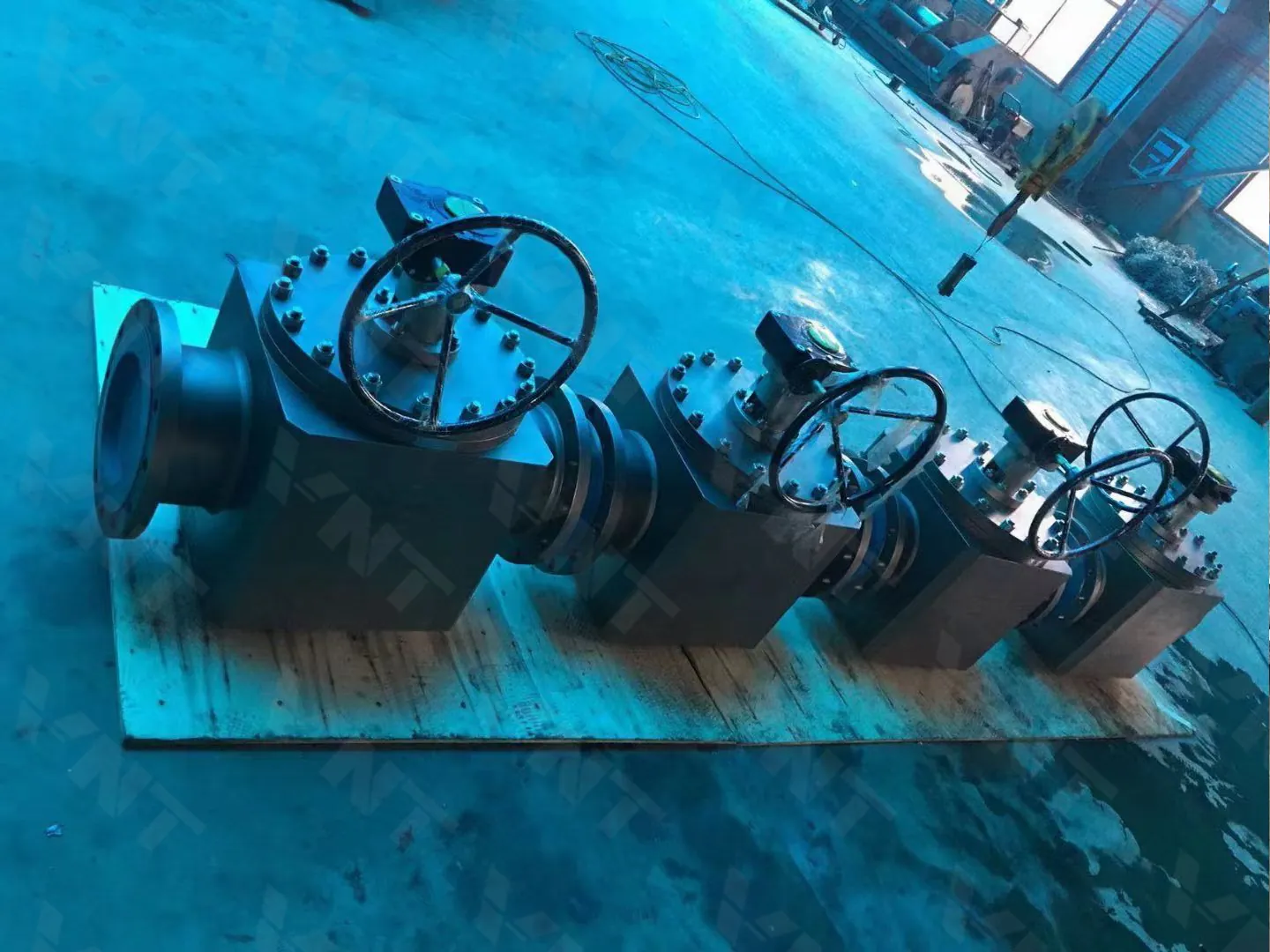

Top Entry Ball Valve for In-Line Maintenance
Product Description
The Vornet top entry ball valve is designed for industrial isolation applications where convenient inspection and maintenance are important. Its top-entry construction provides access to internal components—including the ball, seats, seals and stem—through the top of the valve body, without removing the valve from the pipeline. This arrangement supports efficient servicing where access to internal components is required.

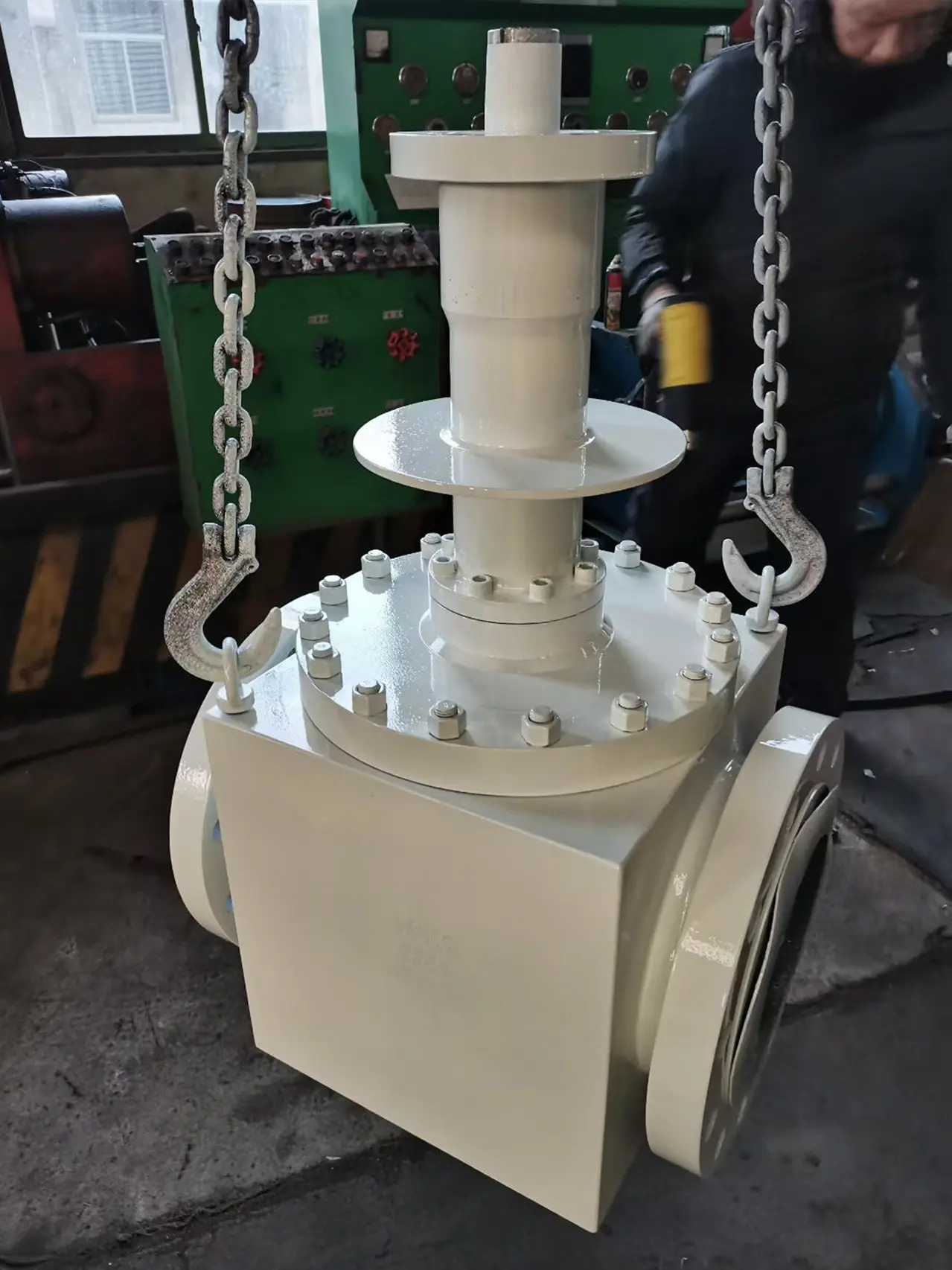

A key structural feature of this top entry trunnion ball valve is its one-piece body. Compared with a split-body construction, fewer body joints help reduce potential external leakage paths and simplify the body structure. The ball and seat assembly is accessed vertically through the bonnet opening, while the flow passage and sealing arrangement follow the approved valve design.
Key Features
- Increased efficiency enabled by independent ball and stem, which minimizes side thrust caused by pressure on the ball
- Improved safety assured by anti-static design that guarantees electrical continuity between all metallic components
- Simplified in-line inspection and maintenance made possible by top-entry design
- Used whenever it is required to perform maintenance activities without removing the valve from the line
- Less potential leakage paths than bolted bonnet side-entry valves
General Information
| Size Range | NPS 1-1/2–60 (DN40–DN1500) |
|---|---|
| Pressure Rating | Class 150–2500 (PN16–PN420) |
| Body Material | Carbon steel, stainless steel, alloy steel, duplex steel, nickel-based alloy, etc. |
| Temperature Range | −196°C to +120°C |
| Operation | Lever, pneumatic, electric, etc. |
| Design Standard | API 6D / ASME B16.34 |
| Face to Face Dimension | ASME B16.10 |
| Ends Connections | ASME B16.5 |
| Test & Inspection | API 598 |
Valve Project
Case Studies
Explore Vornet ball-valve production and delivery records, including pigging and trunnion-mounted configurations. Each case describes its own valve configuration and service conditions.
View All Case StudiesRelated
Documents
Review Vornet catalogues and selection guides when preparing a top entry ball valve enquiry. Send your pipeline service conditions and project datasheet for technical review.
Ball Valve Complete Guide
Trunnion vs Floating Ball Valve
What is a top entry ball valve?
A top entry ball valve provides access to the ball, seats and seals through the bonnet. This Vornet product uses a trunnion mounted design and is listed for in-line inspection and maintenance. Maintenance must follow the approved procedure and safe isolation requirements.
Where are top entry trunnion ball valves used?
The listed applications are petroleum and natural gas pipelines requiring on-off isolation. Final suitability depends on the medium, pressure, temperature, materials, seats, seals and approved project datasheet.
Which sizes and pressure classes are listed?
The published product range is NPS 1-1/2–60 (DN40–DN1500), Class 150–2500 (PN16–PN420). Confirm the available size, pressure class and configuration for the required service before ordering.
Can the valve be automated?
Lever, pneumatic, electric and other specified operating configurations are listed. Specify the required operating arrangement and service conditions for project-specific selection.
Which standards are stated?
The page lists API 6D and ASME B16.34 for design, ASME B16.10 for face-to-face dimensions, ASME B16.5 for end connections and API 598 for testing and inspection. API 6FA and API 607 were also named in the product listing; required fire-test evidence must be confirmed for the supplied configuration.
How do I request a quotation?
Send Vornet the valve size, quantity, pressure class, medium, design and operating pressure and temperature, body and trim materials, seat and seal requirements, end connections, operation, inspection requirements and project datasheet. Include any requirements for top-entry access and in-line maintenance.
