10″ 150LB Pigging Valve | A Solution for Oilfield Gathering Pipeline Pigging in Saudi Arabia

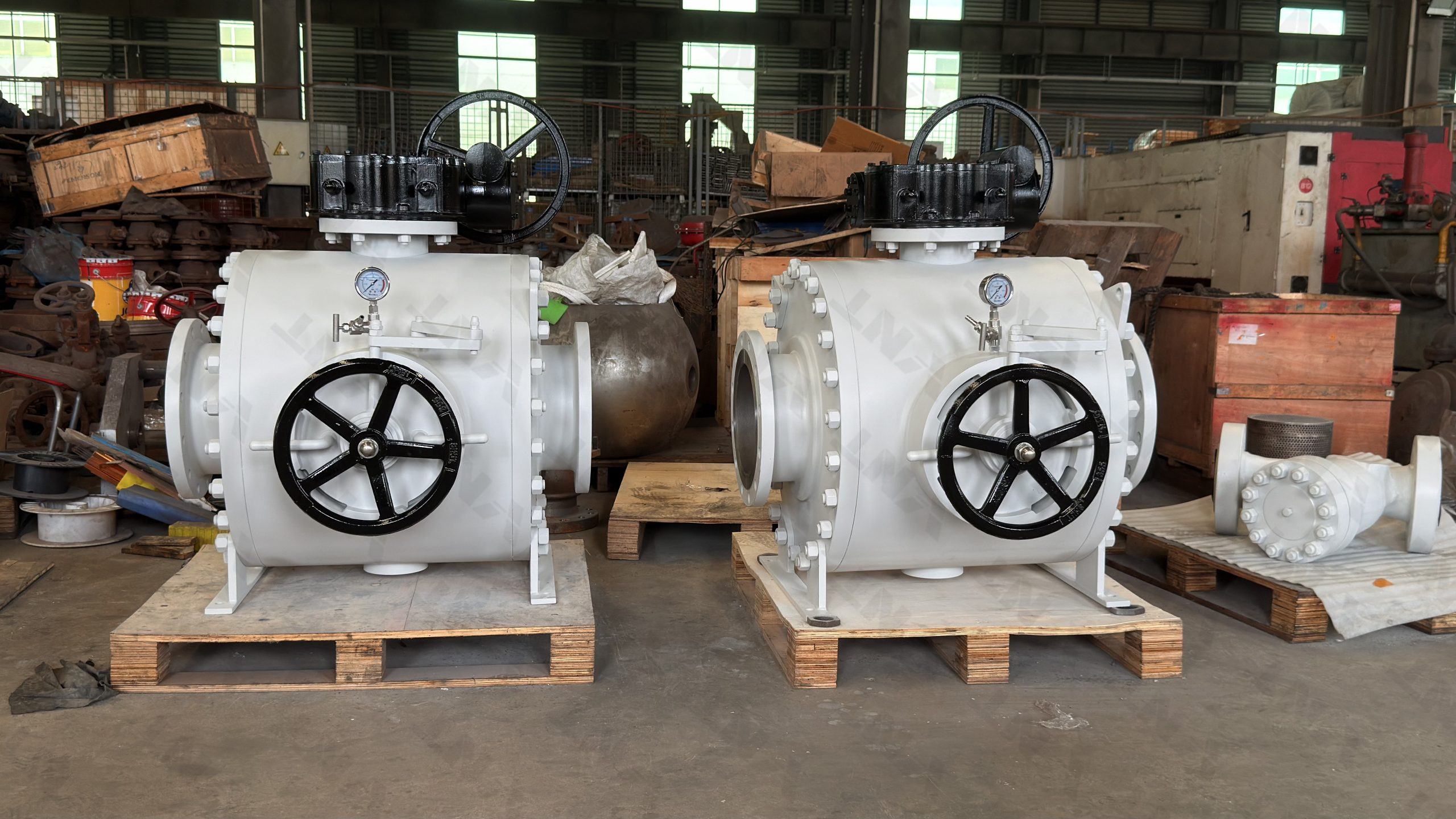

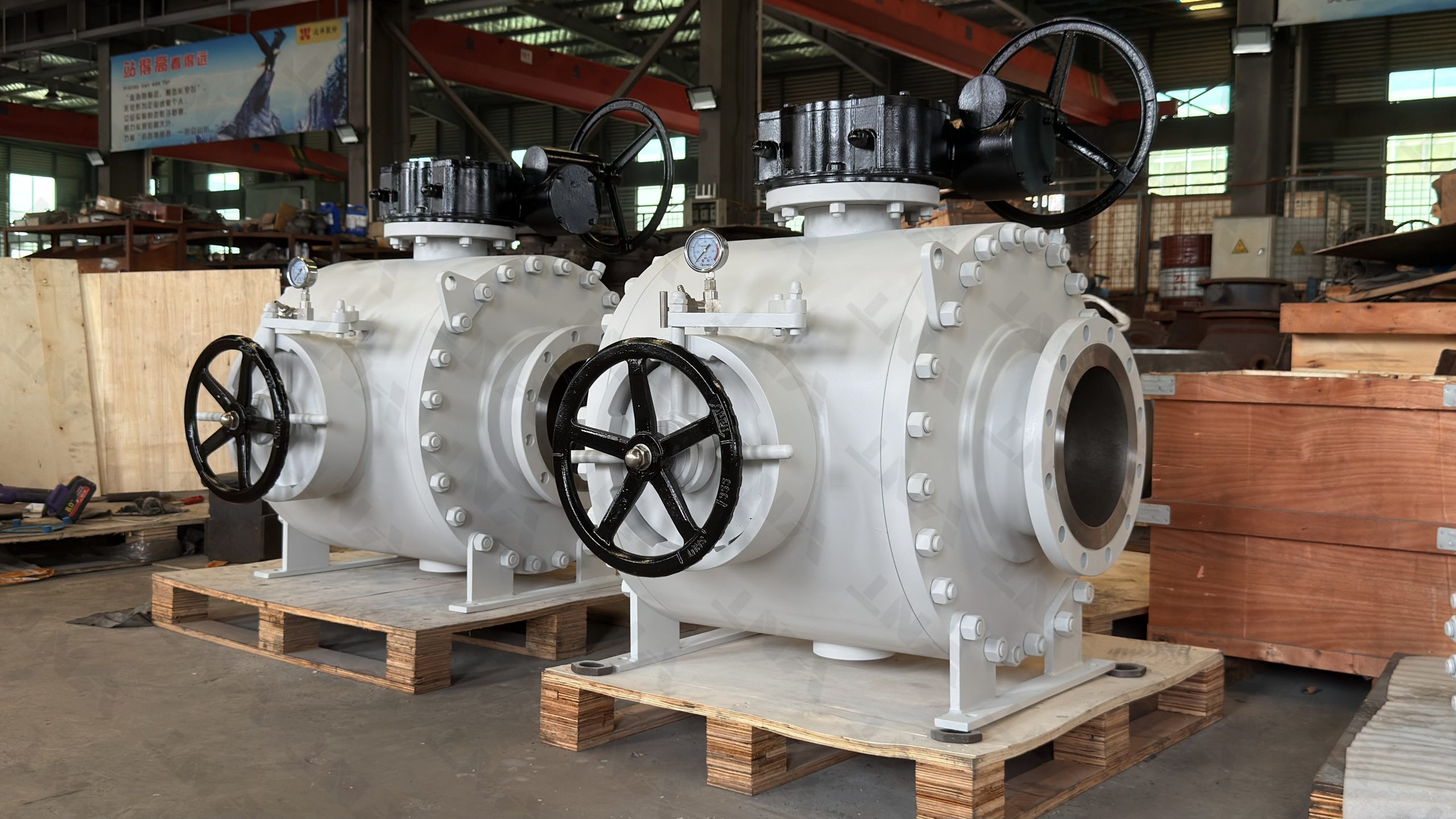

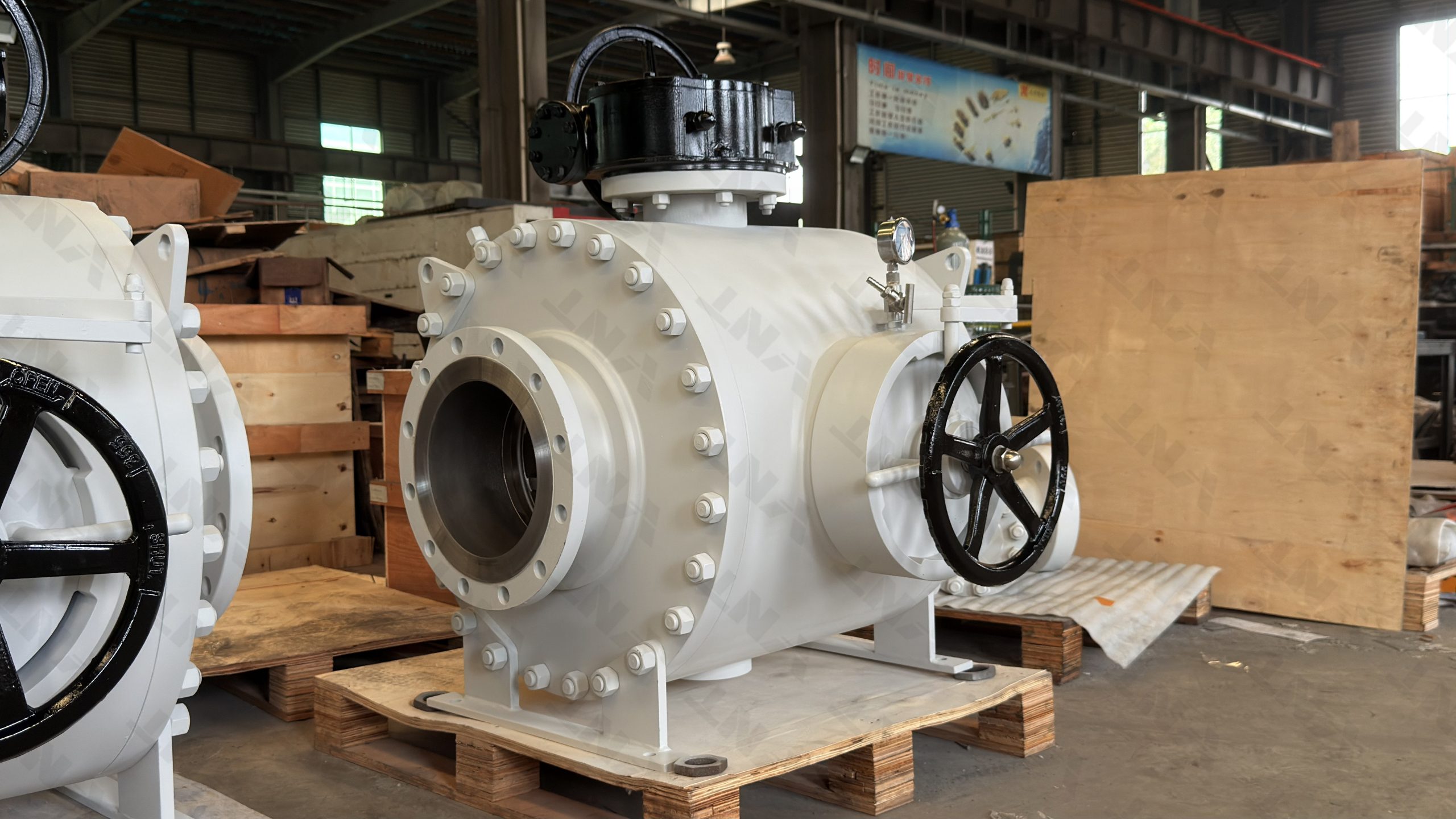

Two white A105 pipeline pigging valves with gear operators in the workshop

Project Overview

VORNET recently supplied a 10-inch, Class 150 pigging valve for a project in Saudi Arabia, supporting pig launching and receiving in oilfield gathering branch lines and tank farm pipelines. The valve was designed to API 6D and pressure-tested to API 598.

The A105 forged steel body meets the requirements of crude oil and natural gas pipeline pigging service. A NACE MR0175 sour-service version is available as an option for media containing H₂S. The full-bore construction provides an unobstructed passage for pigs, while ASME B16.5 flanged ends support integration with the project’s specified pipeline system.

With no reduction in the flow bore, the valve supports pipeline dewaxing, dewatering and compatible in-line inspection pig operations. It is suited to existing oilfield pipeline refurbishment and new gathering branch-line projects in Saudi Arabia.

Send Your Valve Specifications
Valve TypePipeline Pigging Valve
SizeNPS 10
Pressure Class150LB
Body MaterialA105
End ConnectionFlanged (ASME B16.5)

Quality Control & Surface Treatment

All forgings are heat-treated and supplied with complete inspection reports. Before shipment, each valve undergoes rigorous visual inspection and pressure testing. Manufactured to API 6D, the valves in this order passed hydrostatic shell and seat sealing tests performed to API 598. Full material traceability is maintained, and each unit is supplied with a documented test report.

The paint system is applied in two stages: a primer followed by a topcoat. Finished surfaces are checked for visible defects and coating quality, providing a smooth finish with good paint adhesion.

Photo 1 of 5
What is a pipeline pig valve?

A pipeline pig valve (also called a pigging valve or pig launcher valve) is a specialized valve used in pipeline pigging operations. It allows the insertion and retrieval of pipeline inspection gauges (“pigs”) without interrupting the pipeline flow. Pig valves are essential for pipeline cleaning, inspection, and maintenance in oil, gas, and chemical industries.

How does a pigging valve work?

In a pigging system, the pig valve is installed at the pig launcher or receiver. When opened, it provides access for inserting a pig into the pipeline flow. The pig travels through the pipeline, cleaning debris or collecting inspection data, and is then retrieved at the receiver end through another pig valve. The valve’s bi-directional sealing ensures no leakage during the pigging cycle.

What is the difference between a pig valve and a ball valve?

While both are quarter-turn valves, a pipeline pig valve is specifically designed for pigging operations with features like full-bore access, quick-opening capability, and specialized sealing for pig insertion and retrieval. A standard ball valve provides on/off flow control but lacks the pigging-specific features. However, some full-bore trunnion ball valves can also function as pig valves in certain pipeline configurations.

Why choose Vornet Valve as your pigging valve manufacturer?

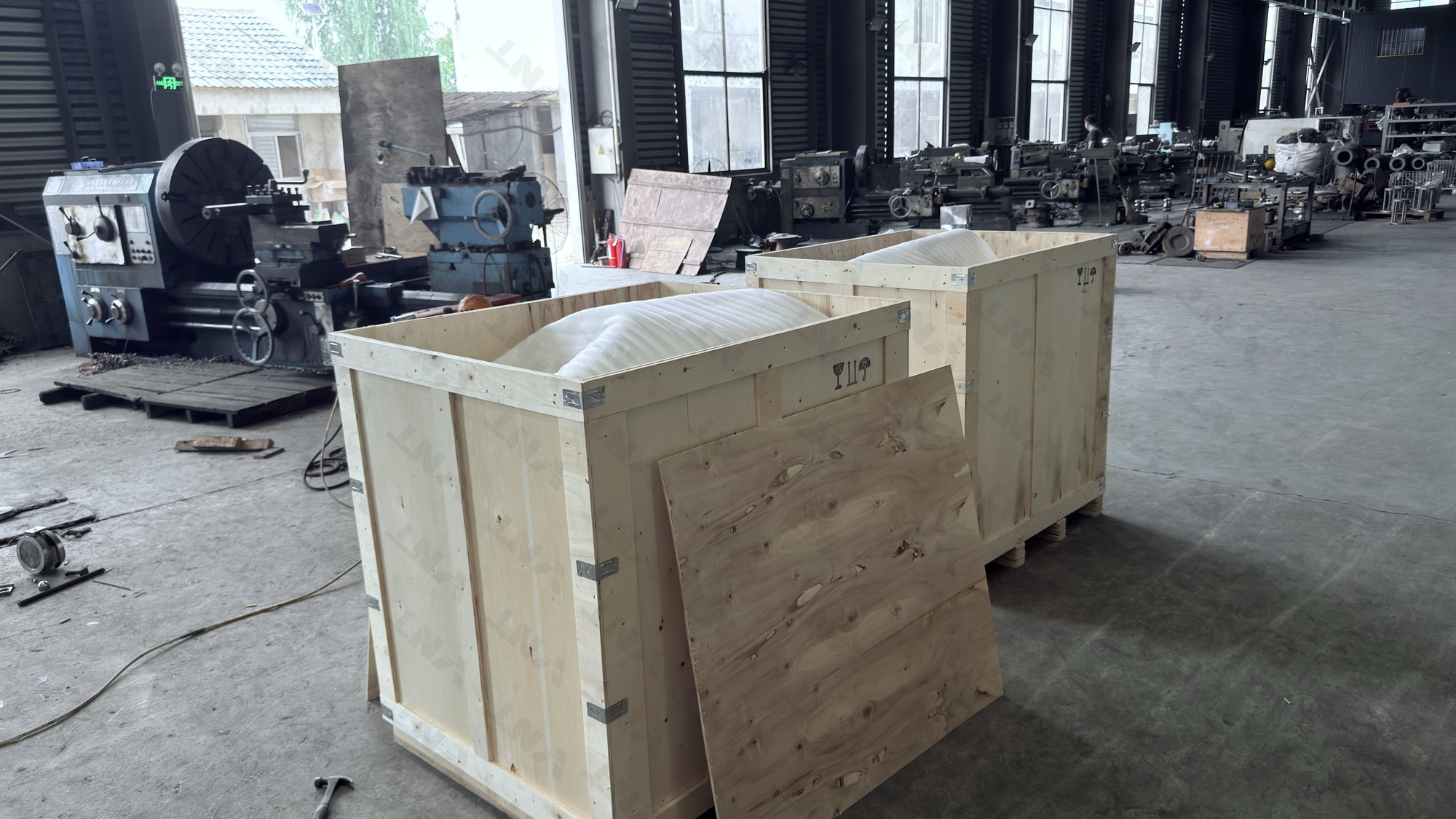

As an experienced pigging valve manufacturer, Vornet Valve delivers API 6D and GB/T 19672 certified pipeline pig valves with full material traceability. We offer custom sizes from 2″ to 48″ in pressure classes 150LB to 2500LB, with A105, LF2, or stainless steel bodies. Every pig valve undergoes hydrostatic testing and is professionally packed for export. Contact us for a quote on your next pipeline pigging project.
