OIL & GAS LONG-DISTANCE PIPELINES
Valve applications from pipeline origin to terminal.
Explore isolation, protection and flow-control requirements across long-distance oil and gas transmission systems.
APPLICATION OVERVIEW
Four critical parts of the oil & gas pipelines process.
PUMP & COMPRESSOR STATIONS
Protect rotating equipment and maintain throughput.
Pump and compressor stations provide the pressure needed to move crude oil, products and natural gas over long distances.
- Pump suction and discharge
- Compressor isolation
- Recycle and bypass lines
- Station inlet and outlet
High flow velocity, vibration and rapid shutdown events can create reverse flow, surge and excessive valve loads.
Full-bore isolation valves and fast-acting check valves are configured around station operating and emergency shutdown sequences.
CLICK TO VIEW PRODUCTS
Integrated pump protection for minimum-flow and recirculation duty.
Controlled closure helps reduce reverse flow and damaging hydraulic surge.
Forged-body, low-torque isolation for high-pressure pipelines.
MAINLINE BLOCK ISOLATION
Section the pipeline quickly and reliably.
Block valve stations limit inventory release and allow pipeline sections to be isolated for inspection, maintenance or emergencies.
- Mainline block stations
- River and road crossings
- Branch connections
- Remote isolation points
Valves may remain static for years yet must operate reliably under full differential pressure when required.
Full-bore ball or slab gate valves with stem sealing, cavity relief and suitable actuation support dependable remote isolation.
CLICK TO VIEW PRODUCTS
Leak-path-minimized isolation for long-distance oil and gas lines.
Welded-body isolation designed for buried transmission pipelines.
Full-bore API 6D isolation for high-capacity pipeline service.
PIG LAUNCHING & RECEIVING
Enable safe inspection and pipeline cleaning.
Pig traps and bypass manifolds allow cleaning, batching and in-line inspection tools to enter and leave the pipeline.
- Launcher barrel isolation
- Receiver barrel isolation
- Kicker and bypass lines
- Vent and drain connections
Sequence errors, trapped pressure and debris can compromise safe opening, closing and pressure equalization.
Full-opening isolation valves and clearly defined vent, drain and bypass valve arrangements support safe pigging procedures.
CLICK TO VIEW PRODUCTS

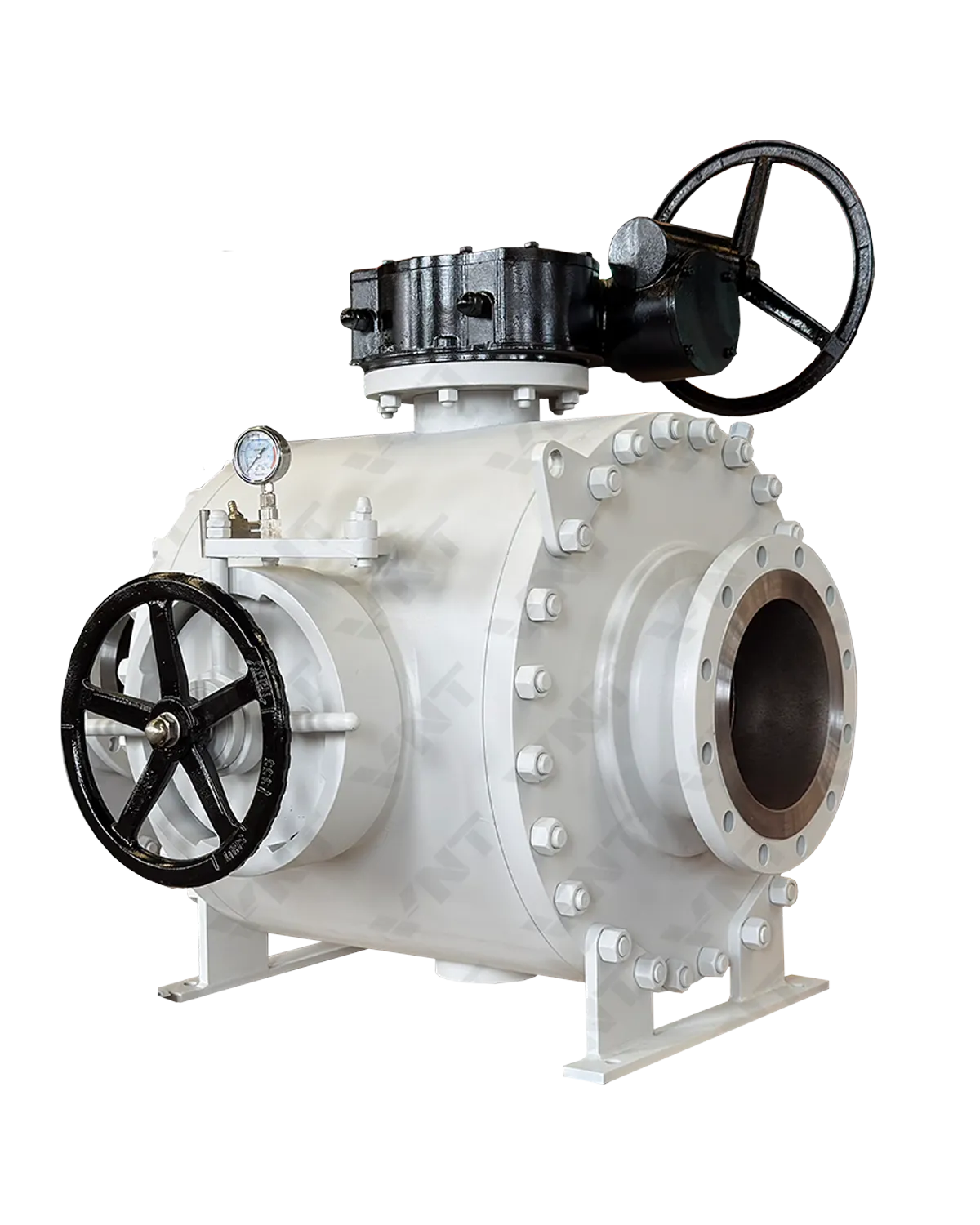

Full-bore valve access for pipeline cleaning and inspection operations.
Compact double-block-and-bleed isolation for critical process lines.
In-line maintainable isolation for critical continuous-service pipelines.
METERING, TERMINALS & STORAGE
Control custody transfer and terminal routing.
Metering stations and terminals route product between pipelines, storage tanks, loading systems and customer connections.
- Meter runs
- Tank farm manifolds
- Loading and unloading
- Pressure and flow control
Accurate routing, low internal leakage and repeatable control are essential for product quality and custody transfer.
Tight-shutoff ball valves, double-isolation arrangements and control valves support dependable switching and measurement.
CLICK TO VIEW PRODUCTS
Compact flow diversion between process, bypass and transfer branches.
Compact quarter-turn tight shutoff for process and utility lines.
Full-bore pipeline isolation with low pressure loss.
OTHER INDUSTRIES
Explore more Vornet applications.
APPLICATION SUPPORT
Tell us where the valve will work.
Share the process area, media, pressure, temperature and project requirement. Vornet will review the application and recommend a suitable valve configuration.
