Vornet forged steel pressure seal swing check valve

Forged Steel Pressure Seal Swing Check Valve

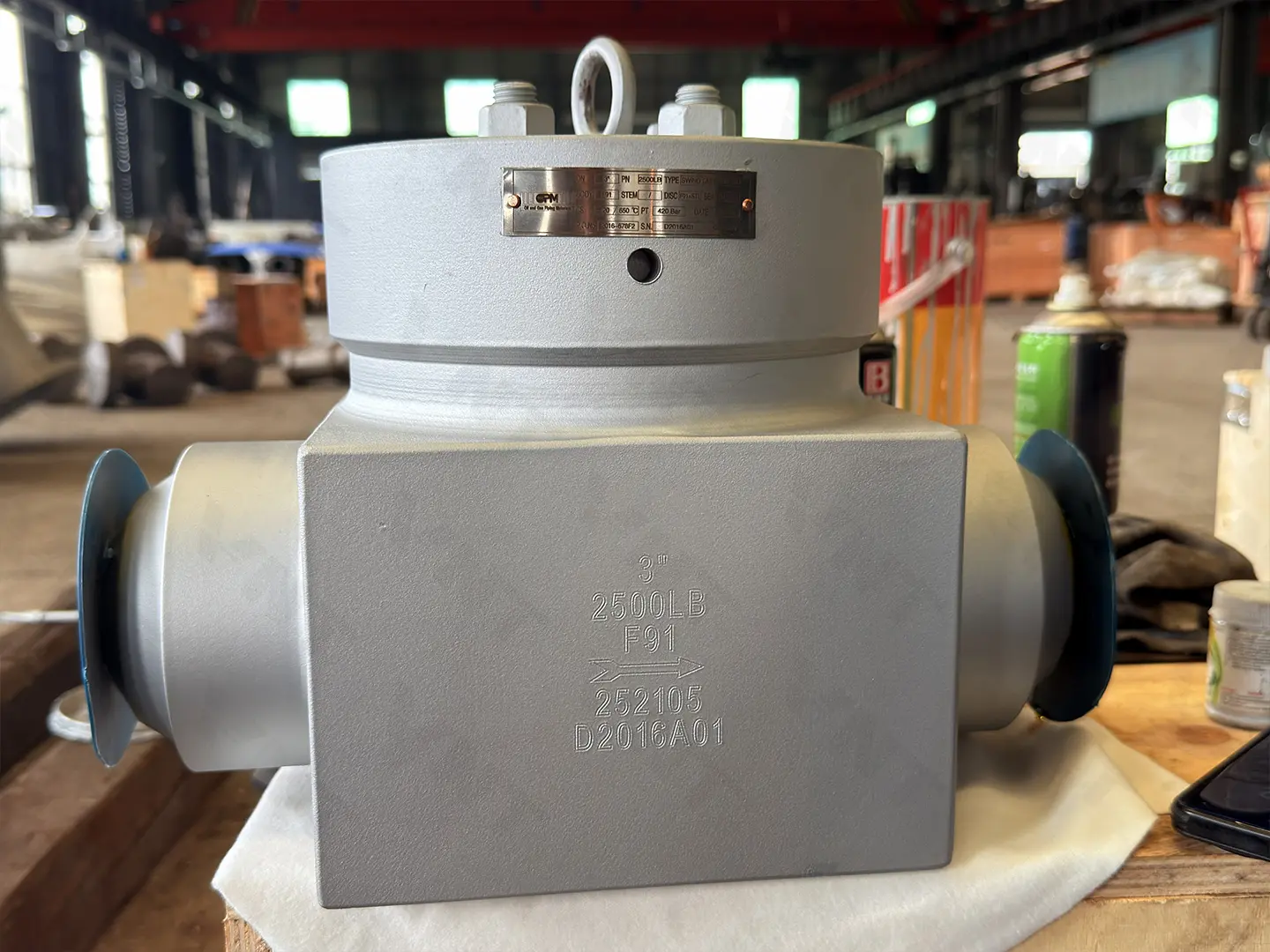

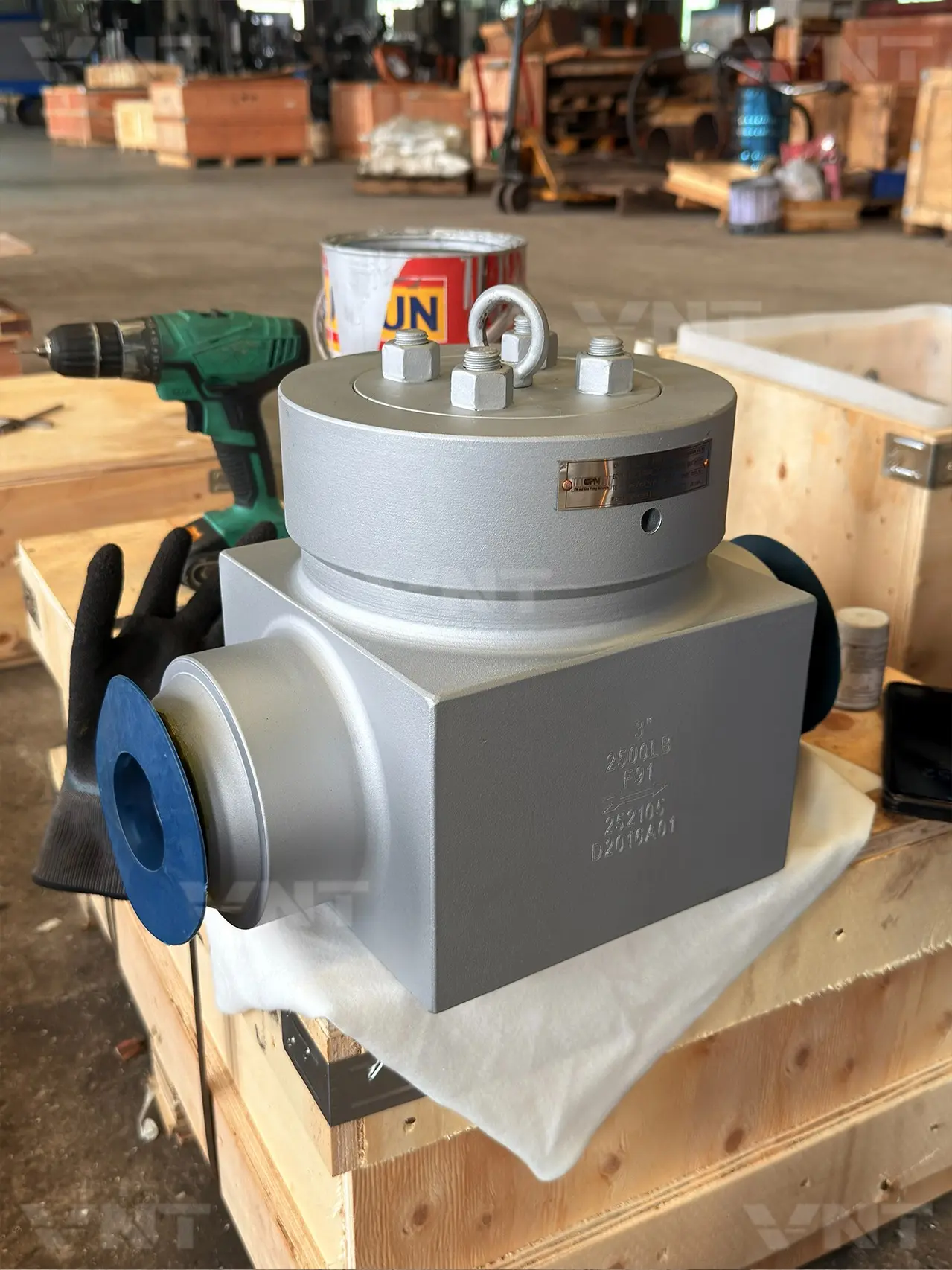

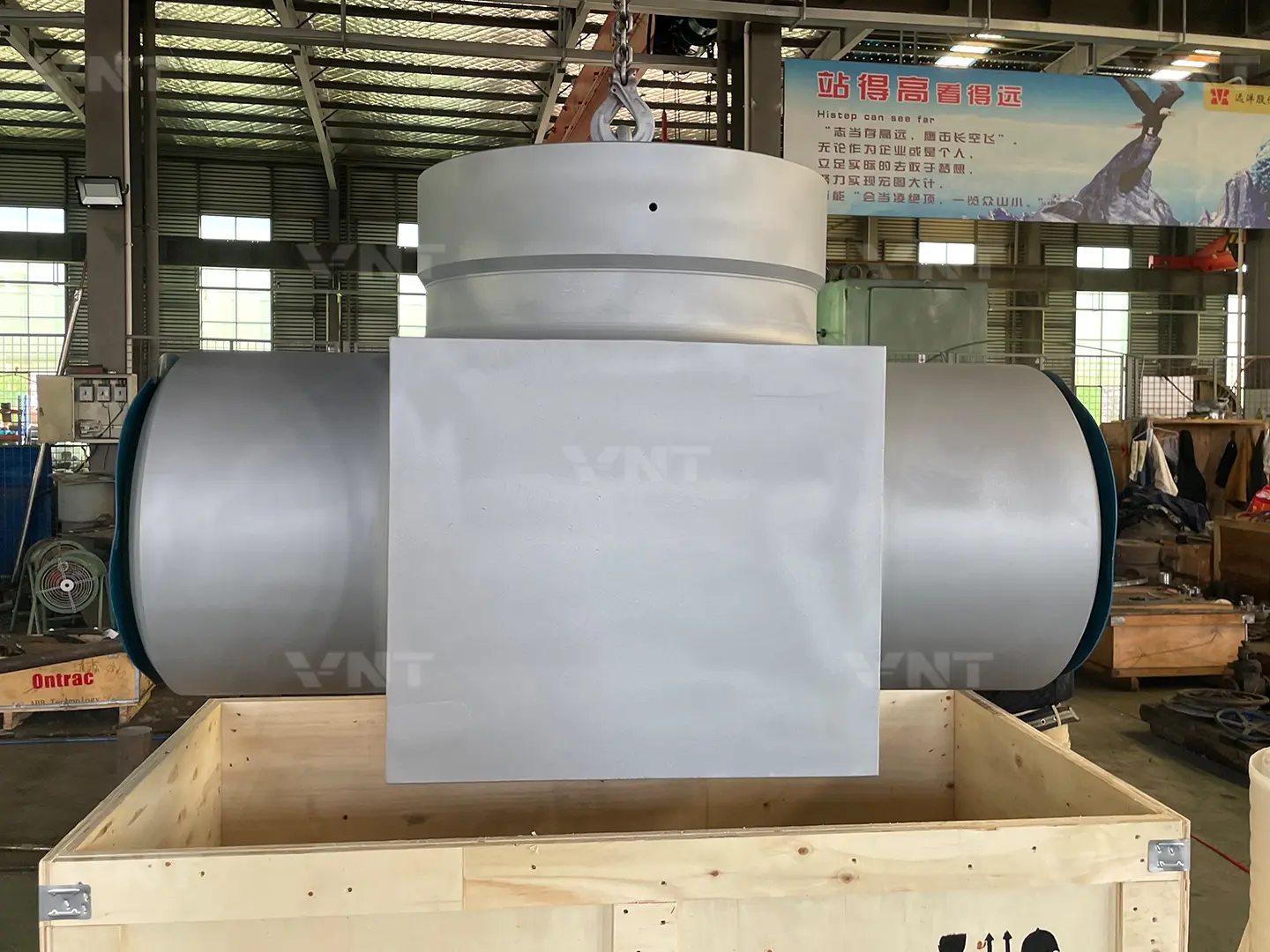

Product Description

Vornet’s high-pressure forged steel pressure seal swing check valve is engineered for backflow prevention in thermal power plants, boiler systems and other elevated-temperature piping. Vornet also provides check valves for petroleum and natural-gas pipeline applications, subject to the specified service conditions.

Check valves allow flow in one direction only and operate automatically in response to fluid flow, without external actuation. They help protect systems and equipment from reverse flow, including during system shutdown.

This high-pressure forged steel check valve family covers NPS 2–30 (DN50–DN750), ASME Class 600–2500, with butt-weld or flanged ends and ASME B16.34 as the design standard.

Key Features

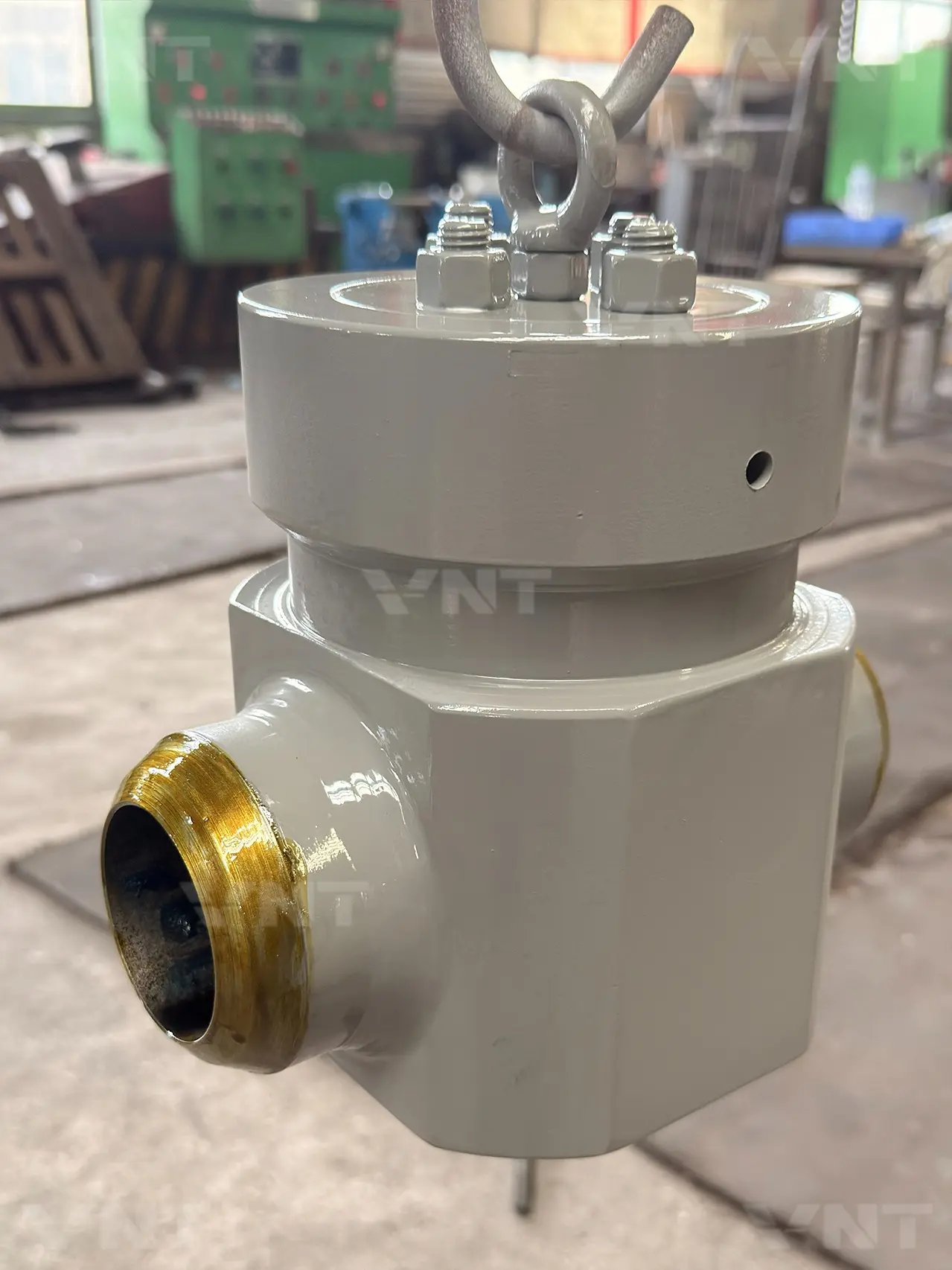

  • Pressure seal hood design in accordance with ASME B16.34.
  • Swing type disc (swing check disc).
  • Pressure seal swing check valves are suitable for service in a horizontal line with a cap vertical or in a vertical line with a flow upward.
  • Carrier Pin is confined within the body wall and is not accessible from the exterior, thus there are no side body penetrations, eliminating a common leak path.
  • Each pressure seal swing check valve is shell and seat pressure tested per industry standard API 598. Seat faces are lapped for a smooth finish and superior sealing.

General Information

Size Range2″–30″ (DN 50–750)
Pressure RatingASME Class 600–2500
Body MaterialCarbon steel, low alloy steel, stainless steel
Temperature Range-29~595℃
OperationAutomatic
Design StandardASME B16.34
Face to Face DimensionASME B16.10
Ends ConnectionsASME B16.25 for butt-weld end preparation; flange standard and dimensions confirmed in the approved datasheet.
Test & InspectionAPI 598

Related
Documents

Download product catalogues and practical RFQ tools for high-pressure and power-station valve projects.

Explore All Downloads ↗
Vornet Ball Valve Product Catalog coverVornet Gate Globe and Check Valve Catalog coverVornet Pigging Valve Product Catalog cover
What is a pressure seal swing check valve, and how does it work?

A pressure seal swing check valve is an automatic non-return valve with a hinged disc and a pressure-seal body-to-cover joint. Forward flow opens the disc; gravity and reverse differential pressure return it to the seat as flow falls or reverses. Unlike a bolted cover, the pressure-seal joint uses internal pressure to increase the sealing load at the cover. The swing-disc mechanism operates without an external actuator.

What sizes, pressure classes and end connections are available?

The listed Vornet series covers NPS 2–30 (DN 50–750), ASME Class 600–2500, with flanged or butt weld ends. Body material options include carbon steel, low alloy steel and stainless steel. Specify the exact size, pressure class, material grade and end connection in your RFQ so the required combination can be confirmed.

Can a pressure seal swing check valve be installed horizontally or vertically?

The installation arrangements listed for this product are a horizontal line with the cover upright, or a vertical line with upward flow. Align the body flow arrow with the normal flow direction. Confirm the orientation for the selected valve configuration against the approved drawing and installation instructions, including the flow conditions and access for maintenance.

How do I select A105, F11, F22 or F91 for the operating temperature?

A105 is a carbon-steel forging grade; F11, F22 and F91 are alloy-steel forging grades. Select the material using the fluid, design pressure and temperature, piping material and project specification. The displayed −29 to 595°C is a product-family range, not the permissible range for every grade. Review the material-specific pressure-temperature rating and the selected valve’s trim and seal limits before approval.

Are these valves designed to ASME B16.34 and pressure tested to API 598?

The stated design standard is ASME B16.34, and shell and seat pressure testing is specified to API 598. The purchase specification should identify the applicable editions, test medium, test pressure, duration and acceptance criteria. Include any witnessed testing or additional inspection requirements in the RFQ for review before quotation.

What information is needed to request a valve quotation and delivery schedule?

Send the size, quantity, pressure class, fluid, operating and design pressures and temperatures, body and trim materials, end connections, installation orientation and flow-rate range. Attach the valve datasheet or piping specification when available. Specify required documents, such as MTC/MTR, inspection records and pressure-test reports, together with any witness requirements. Document scope and delivery time should be confirmed in the quotation after the technical and inspection requirements are reviewed.
