A105 Forged Steel Parallel Double Disc Gate Valves Ready for Shipment

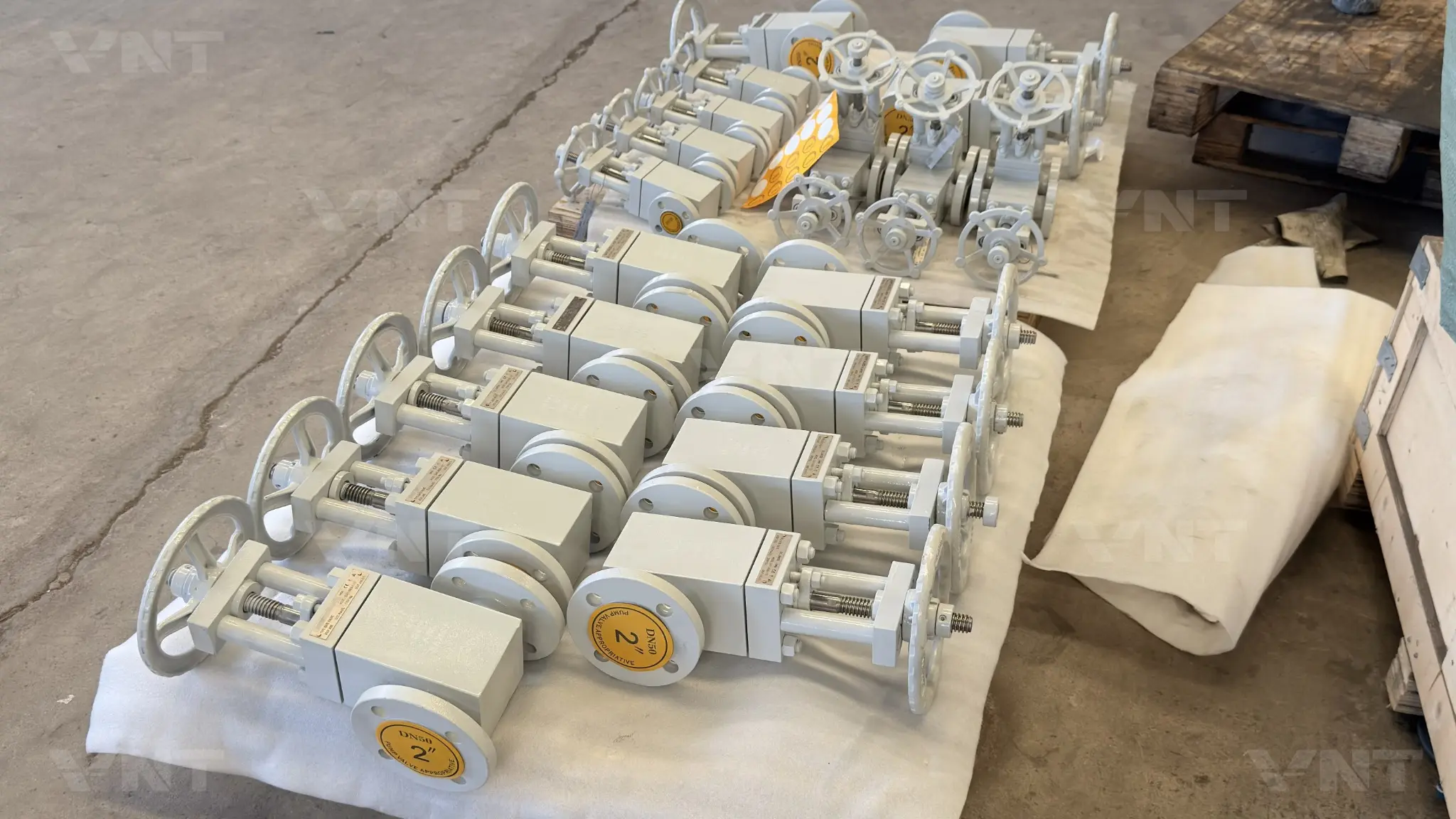

This production batch features ASTM A105 forged steel parallel double disc gate valves in five compact sizes: 1/2″, 3/4″, 1″, 1-1/4″ and 2″. The photographs document the valves from workshop assembly through finishing, protective packing and dispatch.
The parallel double disc arrangement uses two gate discs to provide dependable isolation in a compact forged body. Final pressure class, flange standard, trim, testing and documentation are configured to the purchaser’s project specification.
Technical Specifications
| Valve Type | Forged Steel Parallel Double Disc Gate Valve |
|---|---|
| Body Material | ASTM A105 Forged Carbon Steel |
| Available Sizes in This Batch | 1/2″, 3/4″, 1″, 1-1/4″ and 2″ |
| Disc Design | Parallel Double Disc |
| End Connection | Flanged |
| Operation | Handwheel |
| Pressure Class | Made to Purchase Specification |
| Documentation | Available to Approved ITP and Purchase Requirements |

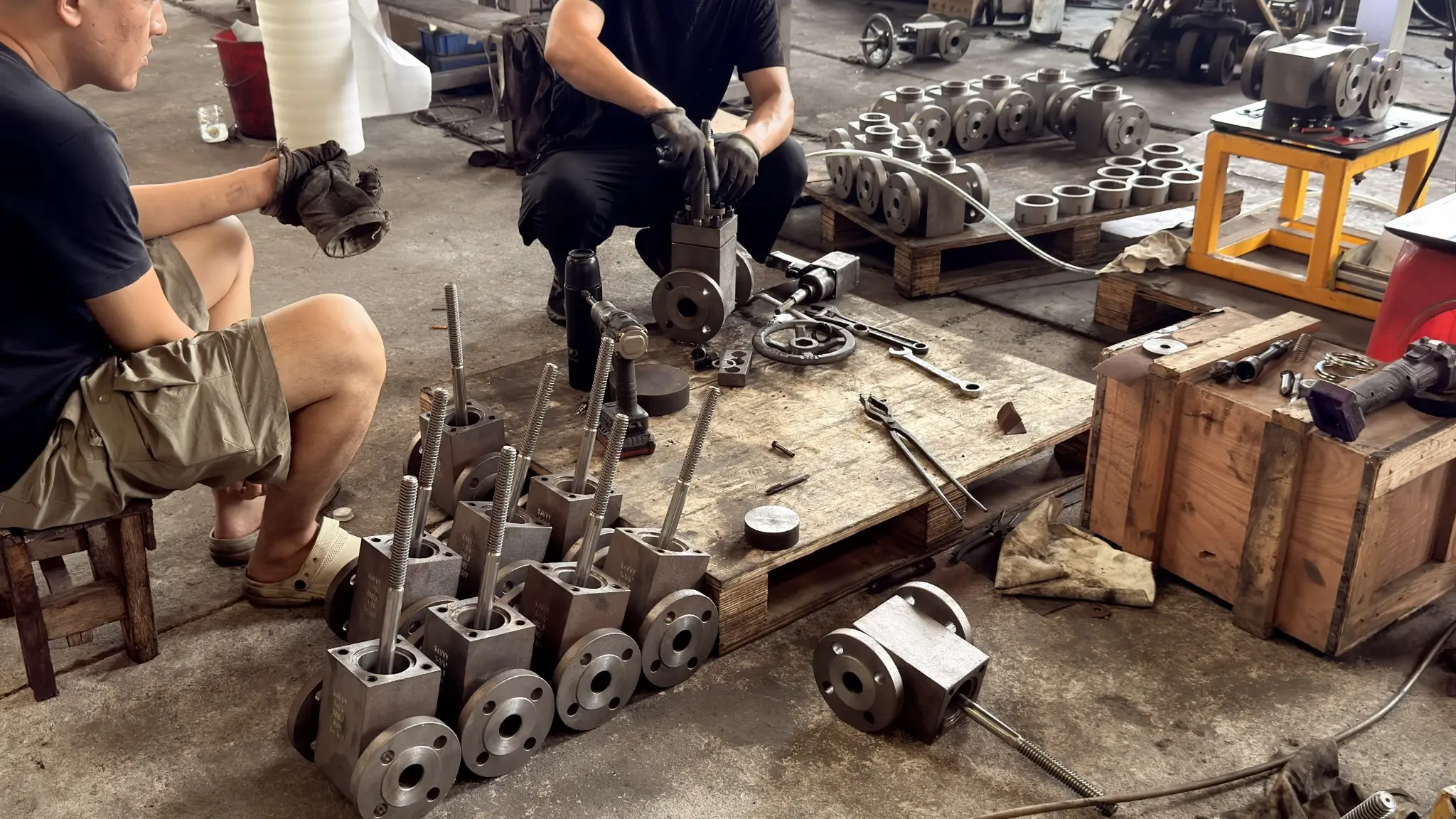

Assembly and Production
Workshop assembly is completed by size in controlled batches. The photographed units show the forged valve bodies, stem assemblies and parallel gate components being fitted before coating and final preparation.

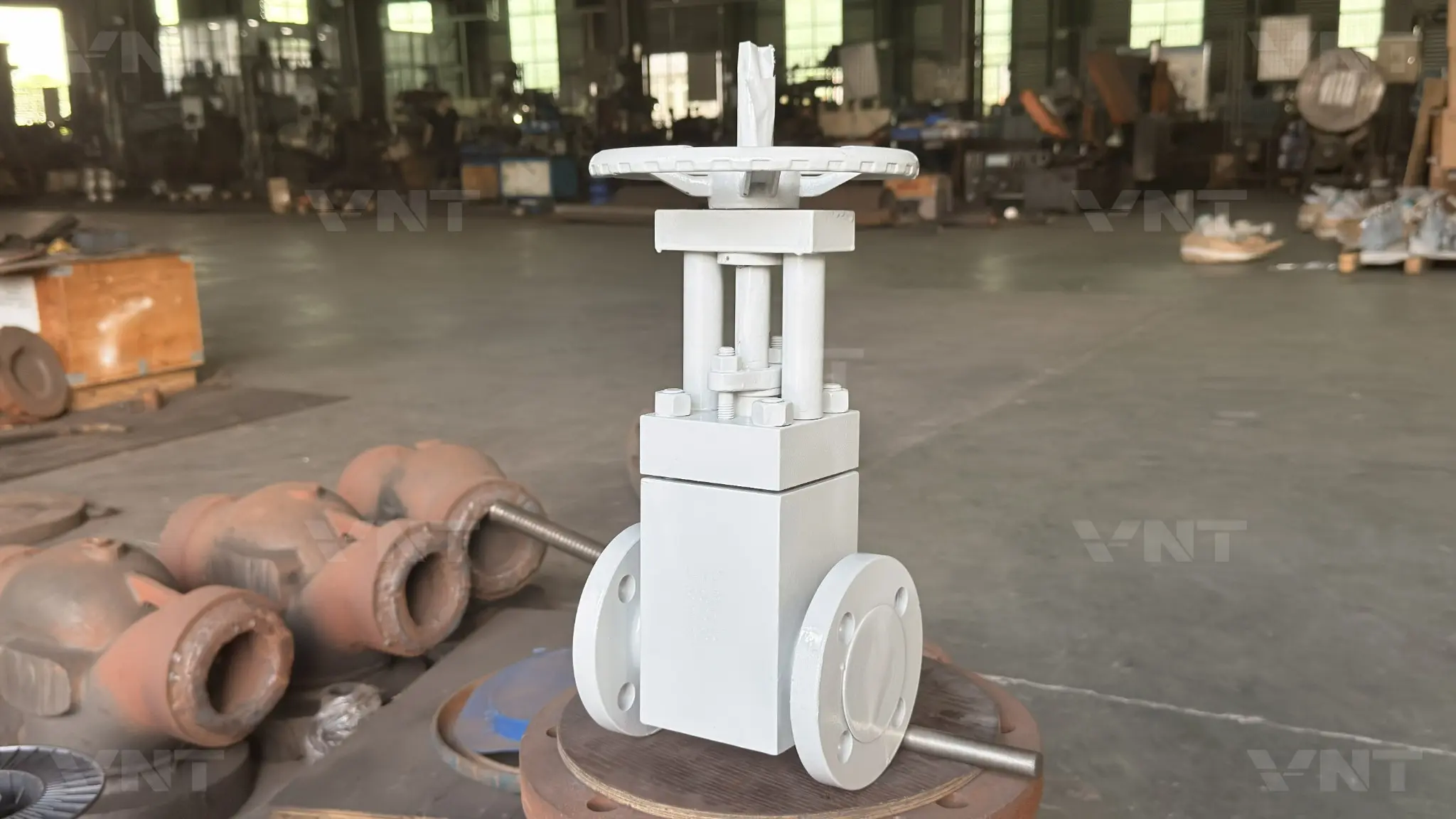

Finished Valve Configuration
The finished valve uses a compact forged body, flanged ends and handwheel operation. The external protective coating is applied after assembly preparation, while project-specific nameplates and identification support traceability.
Protective Export Packing
Each valve is individually wrapped and separated with protective material before placement in the export case. This reduces surface damage and movement during inland handling and international transport.
Shipment
After packing, the wooden cases are secured for transport from the factory. Shipping marks, packing lists and project documentation can be prepared according to the purchase order.
Frequently Asked Questions
What is a parallel double disc gate valve?
It is an isolation valve that uses two parallel gate discs instead of a single wedge. The design is suited to fully open or fully closed service rather than flow throttling.
Why is ASTM A105 used for the valve body?
ASTM A105 is a forged carbon steel material widely specified for pressure-containing piping components. The final material and heat-treatment requirements should always follow the project specification.
Which sizes are shown in this batch?
This batch includes 1/2″, 3/4″, 1″, 1-1/4″ and 2″ valves.
What information is needed for a quotation?
Please provide size, pressure class, end-connection standard, body and trim materials, operating method, quantity, testing requirements and required documentation.
