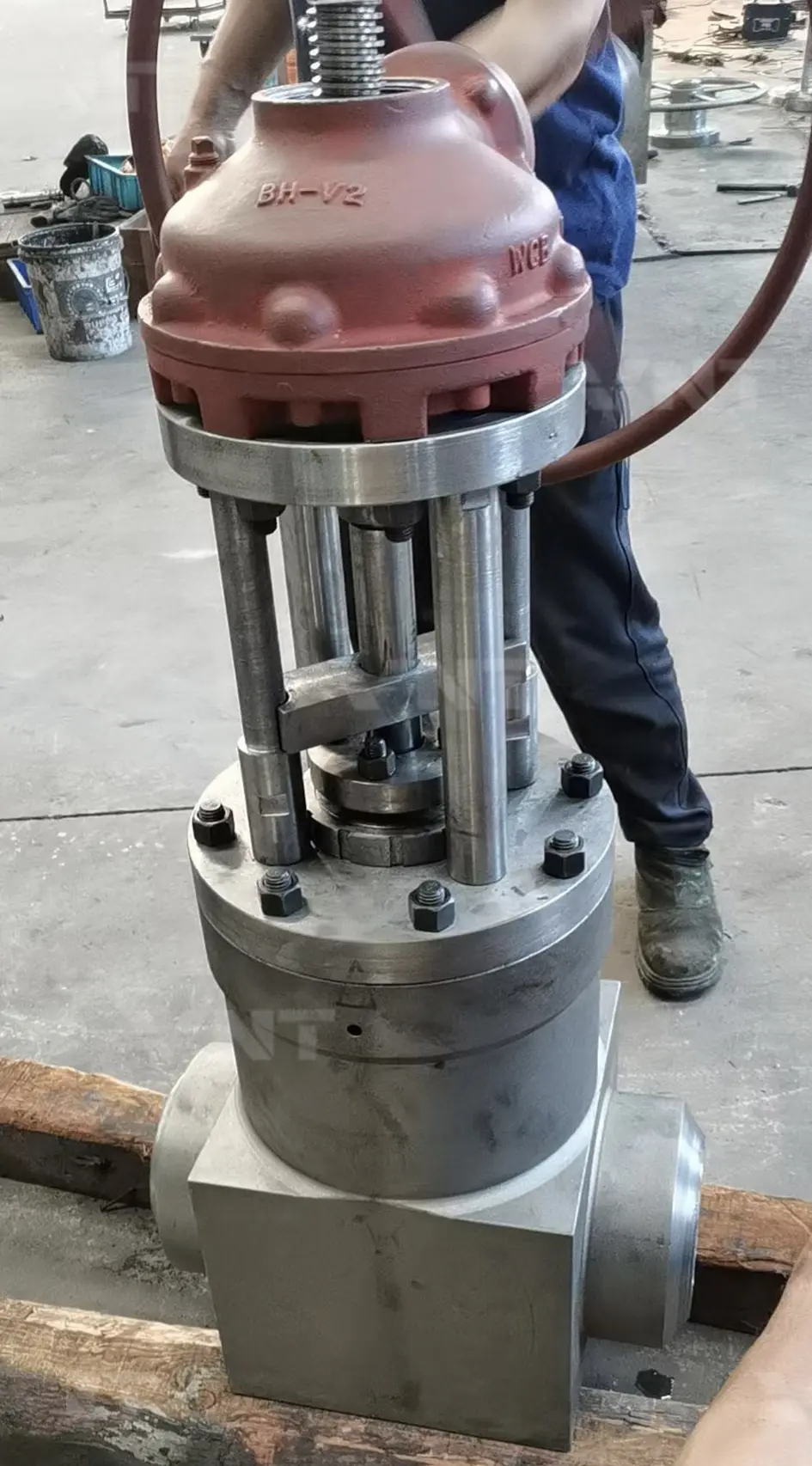

Self-Sealing Wedge Gate Valve for High-Pressure On-Off Service
Integral forged-body wedge gate valve with pressure-activated self-sealing construction for stable bi-directional isolation in high-pressure pipelines.
| Size Range | 6″–36″ (DN150–DN900) |
|---|---|
| Pressure Rating | Class 600–4500 (PN100–PN760) |
| Body Material | A105, F304, F316, F11, F22 |
| Connection Type | Threaded (NPT), Socket Weld (SW) |
| Operation | Manual, pneumatic, electric |
Frequently Asked Questions
The original description states that Class 900 and above use a self-sealing structure for stable high-pressure sealing.
Yes. The original page lists bi-directional on-off service as the intended operating duty.
The published description identifies integral forged construction as a key feature for the listed high-pressure service.
Manual, pneumatic and electric options are listed; selection should match site utilities and control requirements.
Provide medium, operating conditions, connection, actuation, quantity and documentation requirements.
Product Overview
This self-sealing wedge gate valve combines an integral forged body with a pressure-activated sealing system for demanding on-off isolation. The wedge travels vertically to open the passage or seat for shutoff.
The original page states stable sealing under high pressure and specifies self-sealing construction for Class 900 and above. Its bi-directional duty supports pipelines that require isolation in either flow direction.
Listed forged materials, NPT or socket-weld ends and manual or powered operation should be matched to the actual project conditions.
- Integral Forged Body: Supports the listed high-pressure duty.
- Self-Sealing System: Specified for Class 900 and above.
- Bi-Directional Isolation: Designed for on-off service in either flow direction.
- Operation Options: Manual, pneumatic and electric operation are listed.
