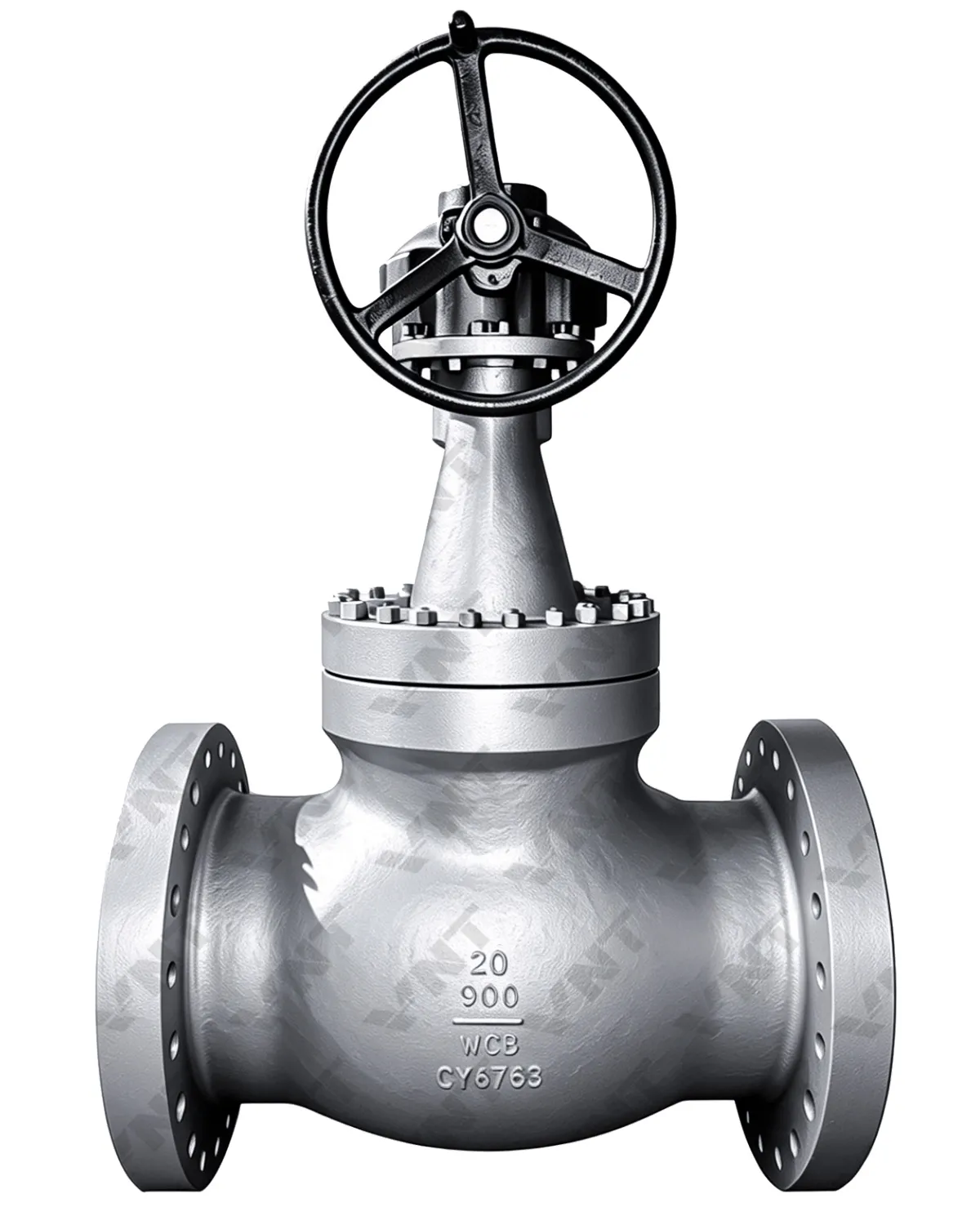

Cast Steel Globe Valve for Petroleum and Chemical Pipelines
Cast steel globe valve for connecting or isolating media in petroleum, chemical and other industrial pipelines. Its forced-sealing design provides a low opening height, short stroke and short opening or closing time.
| Size Range | 2″–24″ (DN50–DN600) |
|---|---|
| Pressure Rating | Class 150–4500 (PN16–PN760) |
| Body Material | Carbon steel, stainless steel, alloy steel, duplex steel, low-temperature steel, nickel-base alloy, titanium alloy, etc. |
| Connection Type | RF, BW, RTJ, etc. |
| Operation | Manual, gear drive, pneumatic, electric, hydraulic, etc. |
| Disc Configuration | Throttling disc or stop-check disc, according to working conditions |
Frequently Asked Questions
This model is intended for connecting or cutting off media in petroleum, chemical and other industrial pipeline conditions. Final selection should be reviewed against the medium, pressure, connection, operating method and required valve function.
The original product information lists both structures as working-condition-dependent options. Confirm whether the project requires throttling duty or a stop-check function so the disc configuration can be reviewed accordingly.
The published design features include low opening height, short stroke and short opening or closing time. Their suitability should be evaluated together with the selected size, pressure and operating method.
Listed operating options include manual, gear drive, pneumatic, electric and hydraulic actuation. Selection should consider valve size, operating frequency, available utilities and the project control requirement.
Provide the service medium, operating pressure, required size, body material, end connection, disc function, actuation method, quantity and any project-specific documentation requirements.
Product Overview
The Vornet Cast Steel Globe Valve is a forced-sealed industrial valve used to connect or isolate media in petroleum, chemical and other pipeline working conditions. Its design is intended for projects that require a compact opening movement and a short operating stroke.
The valve opens and closes through its selected operating mechanism, with the published low opening height and short stroke supporting a short opening or closing time. According to the actual duty, the product can be designed with a throttling disc or a stop-check disc structure.
Project configurations can be reviewed using the listed carbon steel, stainless steel, alloy steel, duplex steel, low-temperature steel, nickel-base alloy or titanium alloy materials. RF, BW and RTJ connections and manual, gear, pneumatic, electric or hydraulic operating methods are also listed for selection.
- Forced-Sealing Design: Intended for connecting or cutting off media in industrial pipelines.
- Short Operating Stroke: The original product information lists low opening height and short opening or closing time.
- Disc Options: Throttling-disc and stop-check-disc structures can be reviewed according to working conditions.
- Project Configuration: Multiple listed materials, connections and operating methods support application-specific selection.
