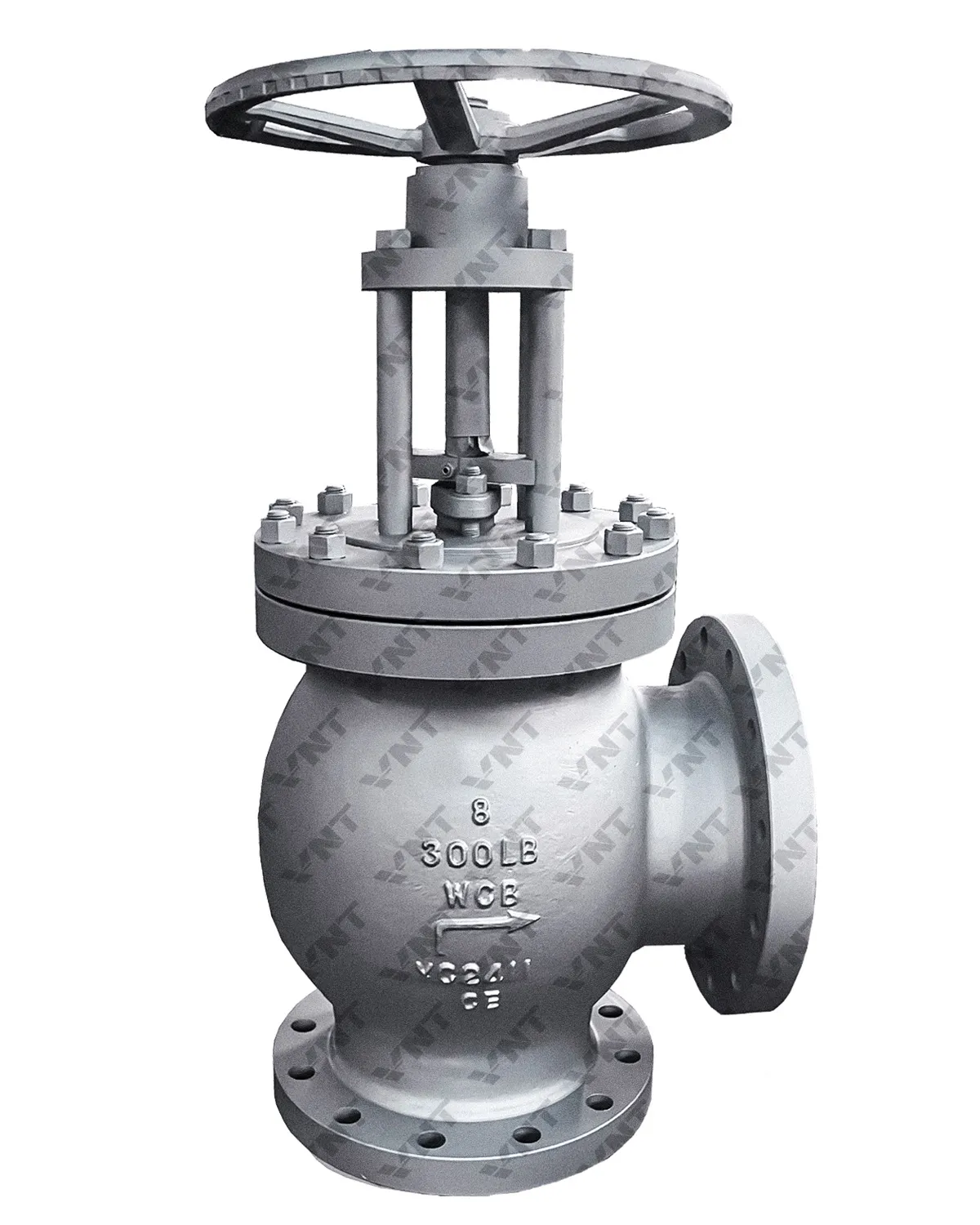

Cast Steel Angle Globe Valve for Viscous and Solids-Containing Media
Integral cast steel angle globe valve that can replace a straight-through valve and elbow combination, helping save installation space, material and potential leakage points in demanding industrial pipelines.
| Size Range | 2″–14″ (DN50–DN350) |
|---|---|
| Pressure Rating | Class 150–900 (PN16–PN150) |
| Body Material | Carbon steel, stainless steel, alloy steel, duplex steel, low-temperature steel, nickel-base alloy, titanium alloy, etc. |
| Connection Type | RF, BW, RTJ, etc. |
| Operation | Manual, gear drive, pneumatic, electric, hydraulic, etc. |
Frequently Asked Questions
This model can replace a straight-through valve and elbow combination. According to the original product information, this arrangement can save material and installation space, simplify installation and reduce potential leakage points.
The opening and closing element is a plug disc that moves linearly up and down along the fluid centerline, as stated in the original product description.
The original page lists high-viscosity media, suspended solids and granular fluids. Final suitability should be reviewed against the actual medium, pressure, selected material and connection arrangement.
Listed options include manual, gear drive, pneumatic, electric and hydraulic operation. Selection should consider valve size, operating frequency, control requirements and available site utilities.
Provide the service medium, required size, pressure, body material, end connection, operating method, installation layout, quantity and any project-specific documentation requirements.
Product Overview
The Vornet Cast Steel Angle Globe Valve uses an integral cast steel body and is intended for industrial pipeline installations where a change in flow direction and valve function must be combined within a compact arrangement. Its cast construction is suitable for mass production and provides the cost advantage stated in the original product description.
The opening and closing component is a plug disc that moves linearly along the fluid centerline. By replacing a conventional straight-through valve and elbow combination, the angle-body arrangement can reduce the number of separate pipeline components while saving material and installation space.
The product is listed for high-viscosity media, suspended solids and granular fluids. Project selection can use the stated range of body materials, RF/BW/RTJ connections and manual, gear, pneumatic, electric or hydraulic operating methods according to actual working conditions.
- Compact Angle Arrangement: Combines the role of a straight-through valve and elbow in the described installation.
- Reduced Connection Points: Fewer separate components can simplify installation and reduce potential leakage points.
- Linear Plug-Disc Motion: The disc moves up and down along the fluid centerline.
- Media Application: Listed for high-viscosity, suspended-solid and granular-fluid conditions.
