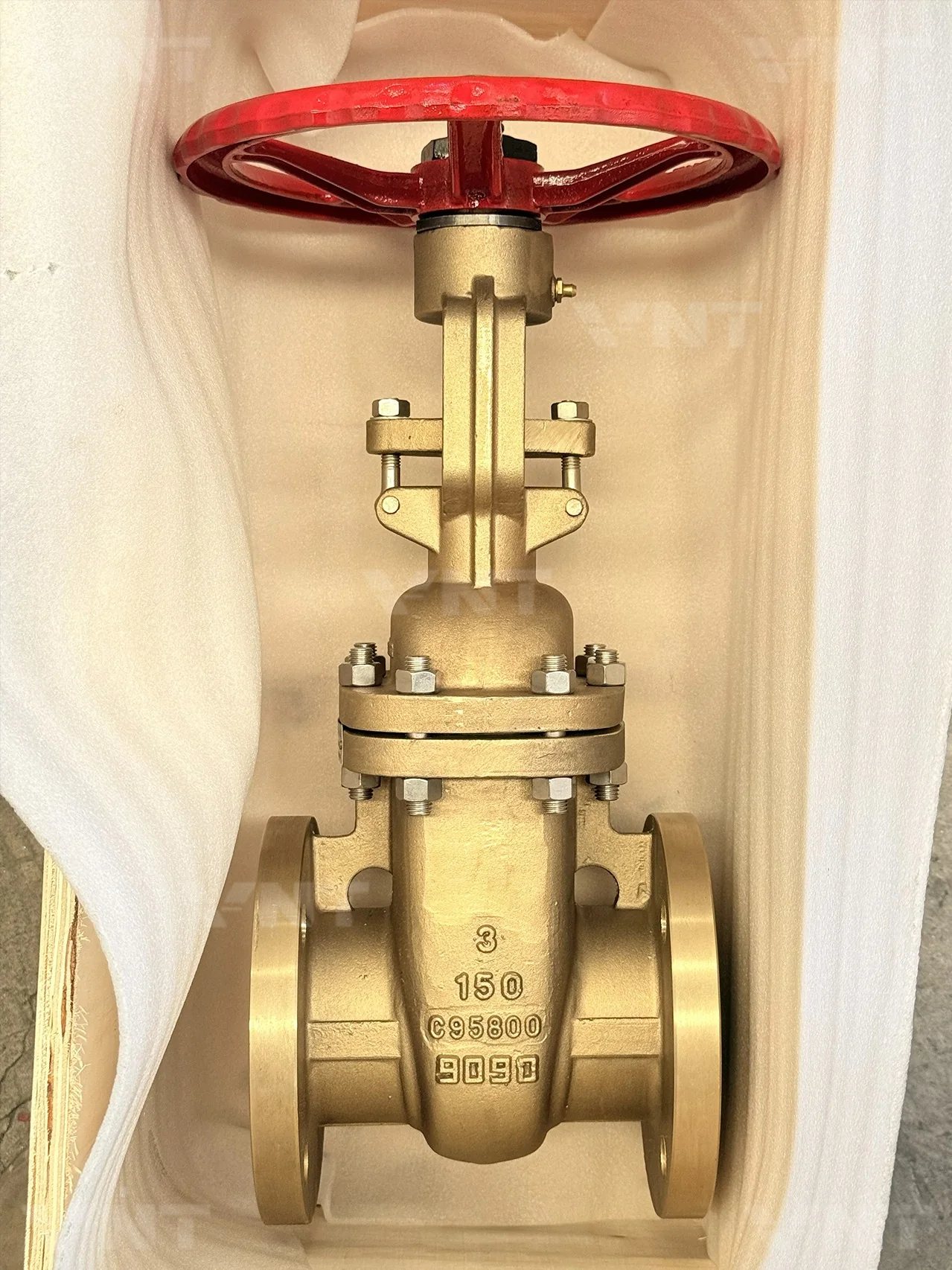

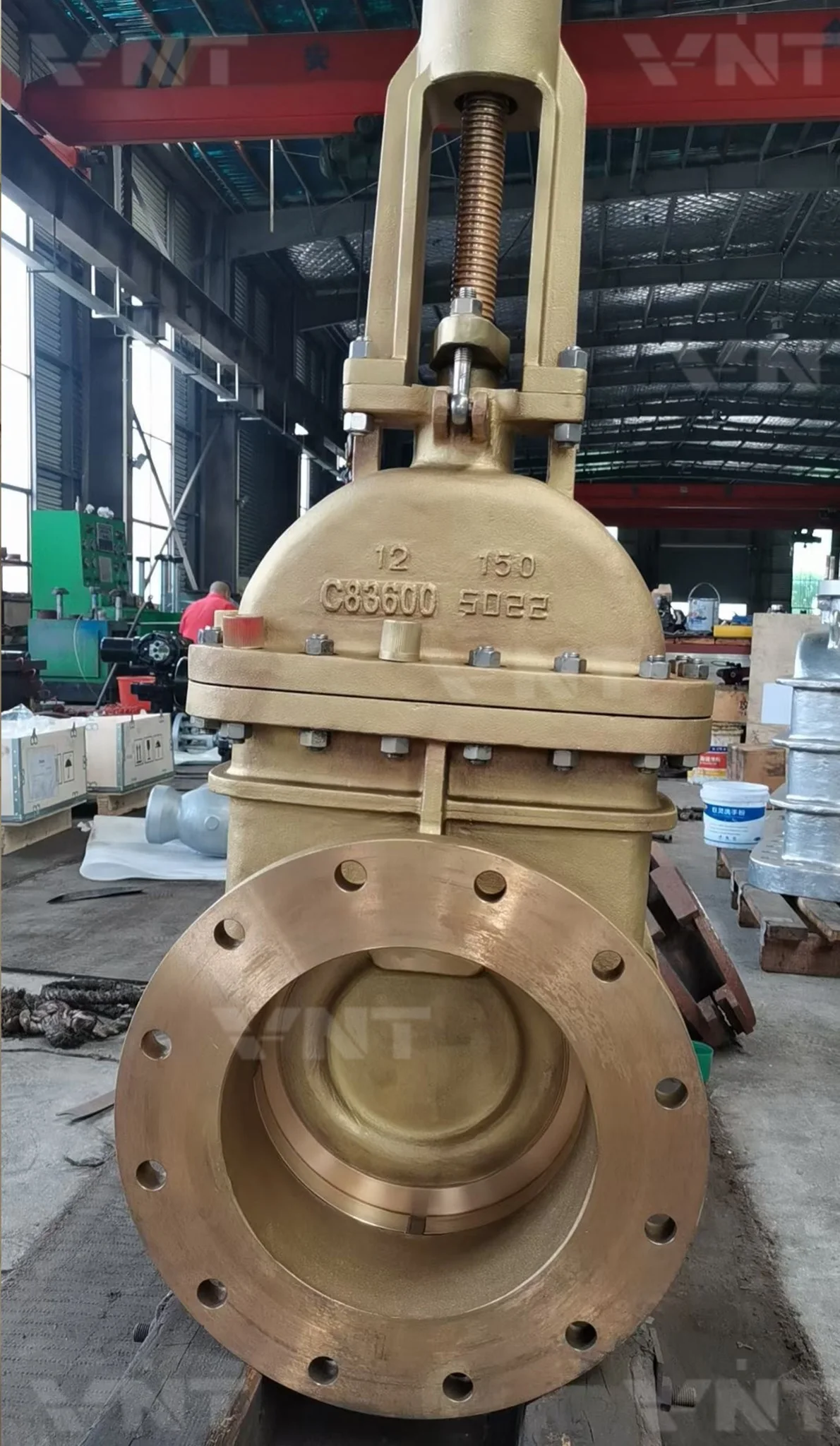

Bronze Gate Valve for Water, Seawater and Marine Service
Bronze gate valve for reliable on-off isolation in water, seawater and compatible industrial piping services.
| Size Range | DN15–DN300 (NPS 1/2″–12″) |
|---|---|
| Pressure Rating | ASME Class 150 / 300 |
| Body Material | ASTM B148 C95800 nickel-aluminum bronze; C95400 and C95500 optional |
| Connection Type | Flanged RF; threaded NPT available on request |
| Design Standard | MSS SP-80, ASME B16.24 |
| Testing | API 598 / MSS SP-80, or customer/project specifications |
| Operation | Handwheel, gear or actuator |
Frequently Asked Questions
Provide the line size, pressure class, end connection, medium, temperature and applicable project standard. These details determine the correct body, trim and sealing configuration.
Typical services include water, seawater, marine systems and other compatible industrial fluids. Final suitability depends on the specified bronze grade and operating conditions.
Cast bronze and other specified copper-alloy grades can be supplied according to the project datasheet. Material selection must be checked against the medium, temperature, pressure and corrosion requirements.
Flanged and threaded connections are commonly available. Final dimensions, facing and drilling are confirmed against the approved project standard and drawing.
Provide DN/NPS, pressure class, connection standard, bronze grade, trim, medium, temperature, operation, testing and documentation requirements.
Product Overview
Bronze gate valves are on-off isolation valves used in water, seawater, marine systems and compatible industrial piping. Valve size, pressure class, bronze grade, end connection and applicable standard should be confirmed according to the project requirements.
Copper-alloy selection must match the fluid chemistry, pressure-temperature rating and corrosion requirements. Trim, packing, bolting, inspection and test acceptance should follow the approved project datasheet.
Gate valves are intended for fully open or fully closed service. Bore, face-to-face dimensions, flange drilling and actuator arrangement should be confirmed on the certified drawing before manufacture.
- Project-Specific Design: Configuration reviewed against the specified valve and piping standards
- Bronze Body Construction: Selected for compatible water, seawater and industrial services
- Multiple End Connections: Flanged, threaded and project-specified connection options
- Testing and Records: API 598 or project-specific inspection and documentation
Related Gate Valve Selection Guides
← Back to Gate Valve ProductsDiscuss Your Bronze Gate Valve Requirements
Send your medium, pressure, temperature, size, material and connection requirements for technical review and valve selection.
