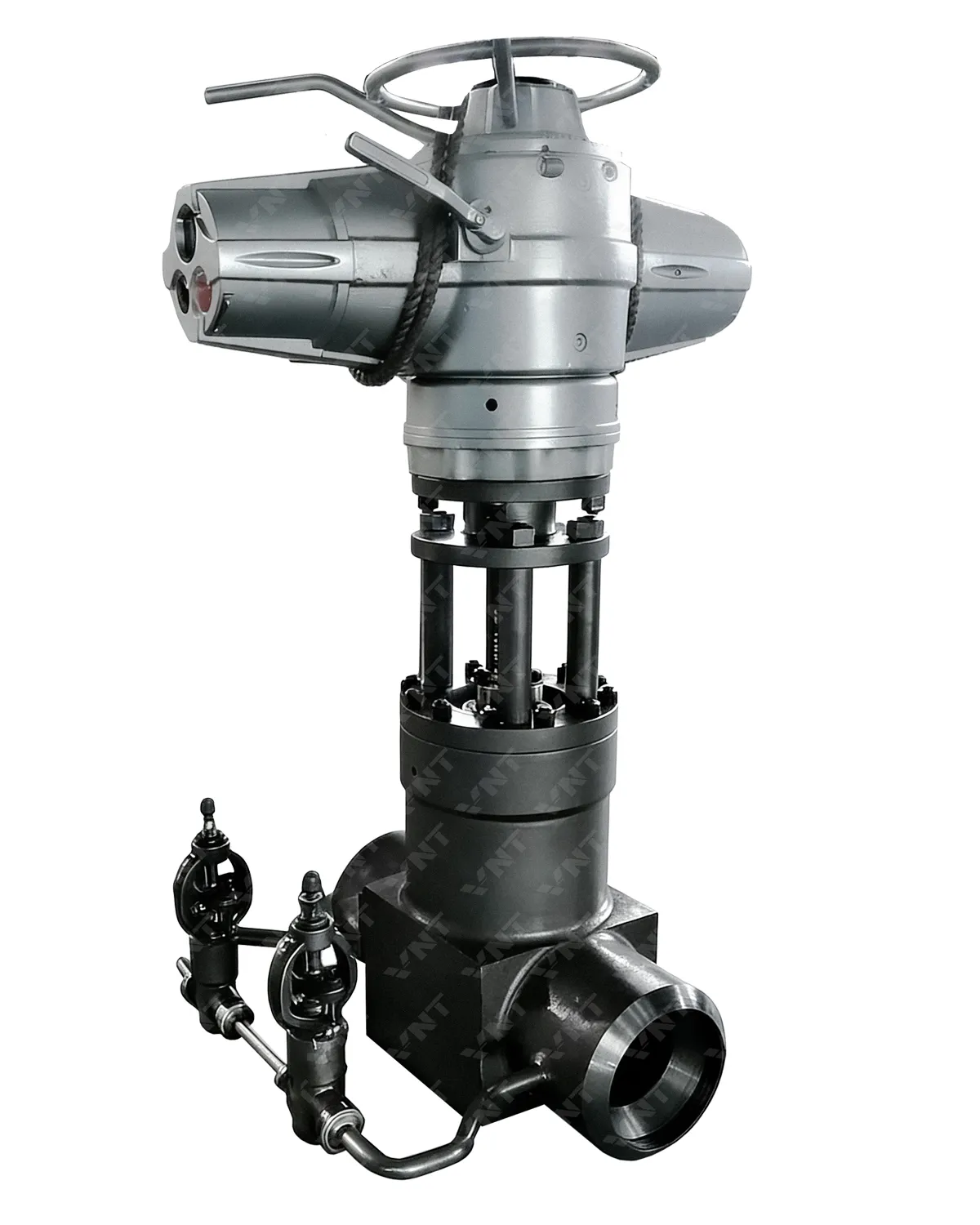

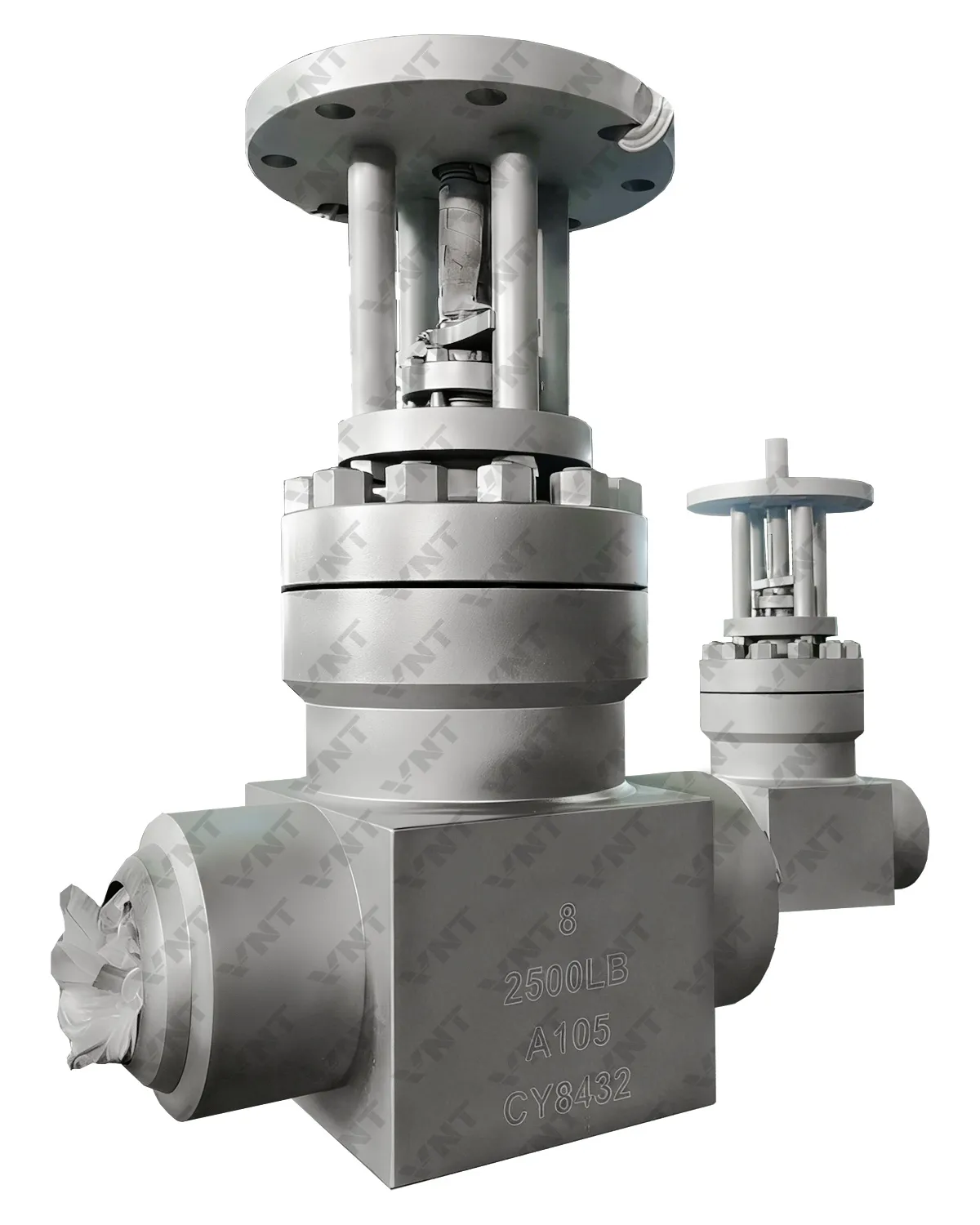

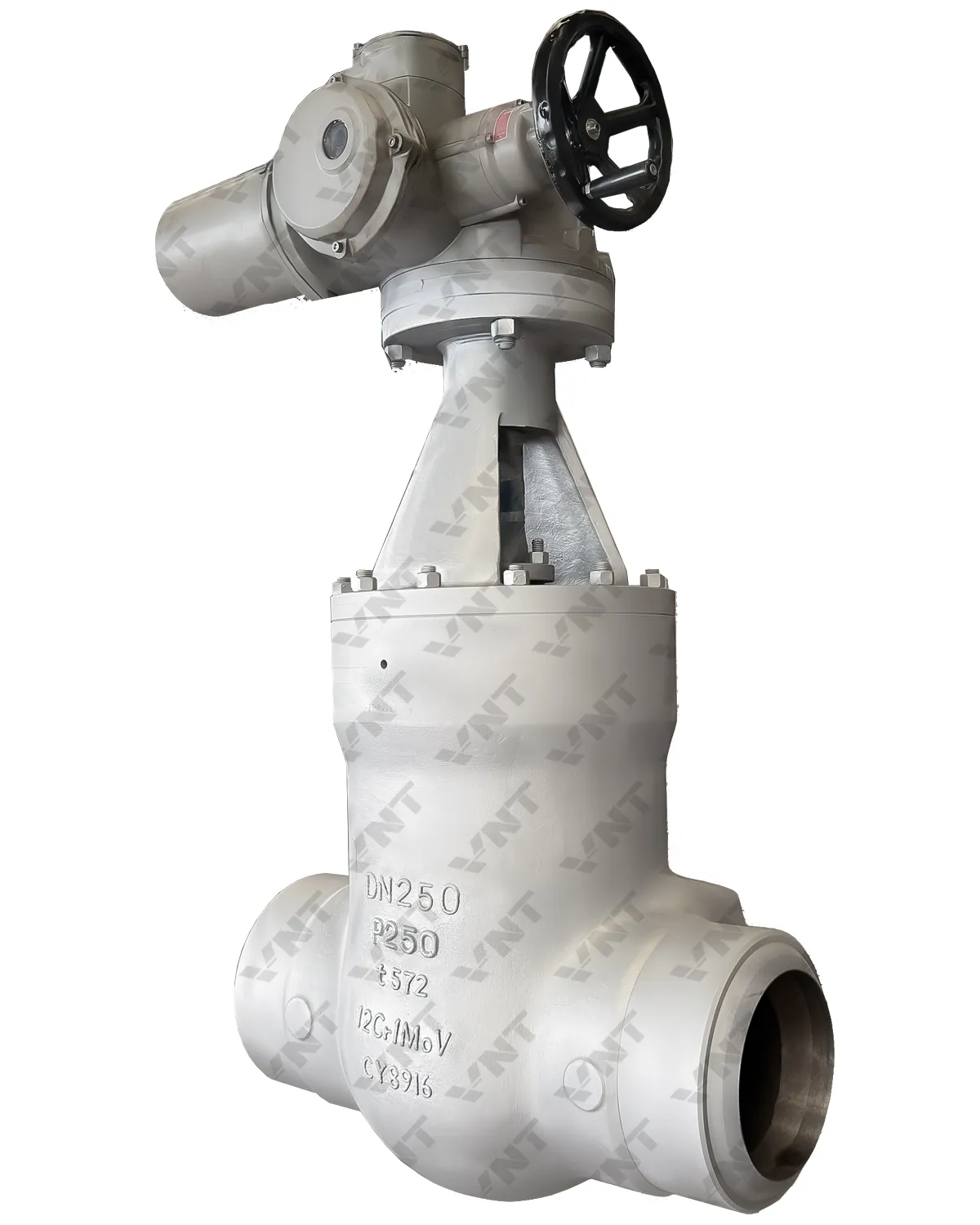

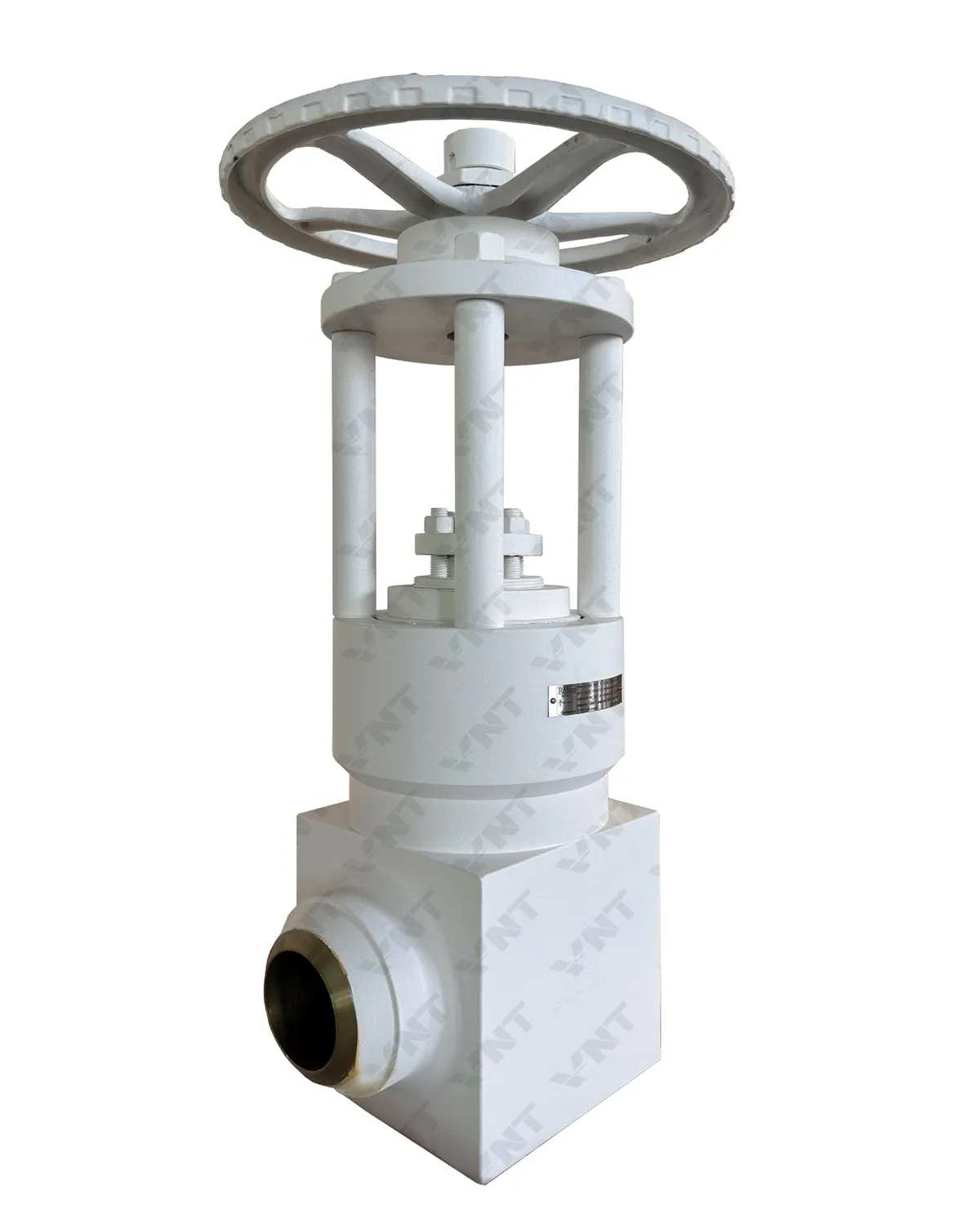

Cast Steel Gate Valves – High Quality Industrial Gate Valves
Vornet Valve offers a comprehensive range of cast steel gate valves designed for high-pressure and high-temperature applications in the oil and gas, petrochemical, power generation, and industrial process industries. Our gate valves are manufactured in accordance with API 600, API 6D, ASME B16.34, and ISO 9001 standards, ensuring reliable performance and long service life.
Our cast steel gate valve product line includes slab gate valves, parallel gate valves, wedge gate valves, and expanding gate valves, available in sizes from 2″ to 48″ and pressure classes from Class 150 to Class 2500. Valve body materials include WCB, LCB, CF8, CF8M, WC6, and WC9, suitable for a wide range of media including water, oil, gas, steam, and corrosive fluids.
Key features of our cast steel gate valves: full bore or reduced bore design, flexible wedge or solid wedge, OS&Y or non-rising stem, manual or actuated operation, and multiple end connections including flanged, butt-weld, and socket-weld. All valves undergo 100% shell and seat hydrostatic testing per API 598 standards.
Contact Vornet Valve for customized gate valve solutions for your specific application requirements. Our engineering team provides technical support, material selection guidance, and rapid quotations for all industrial valve needs.

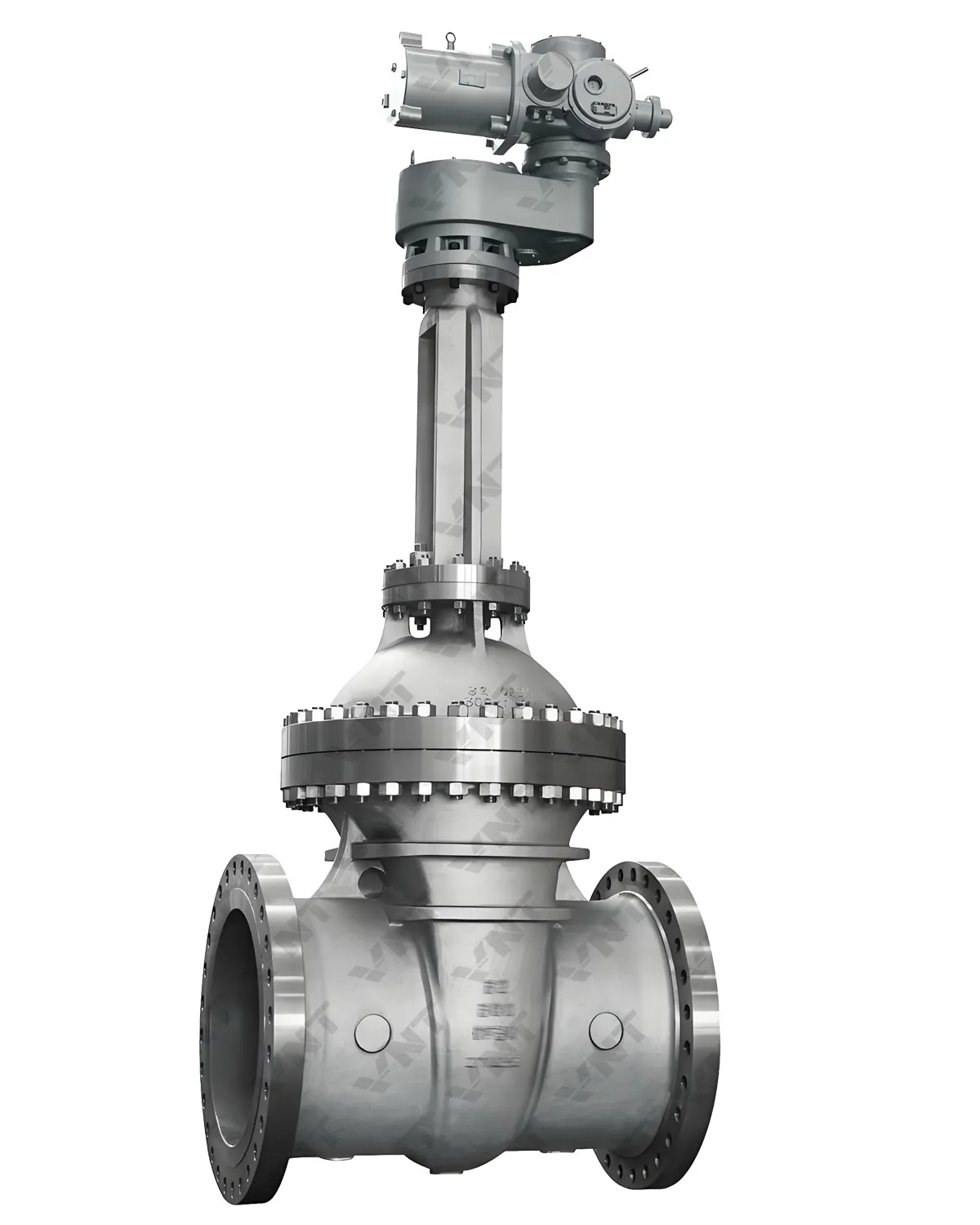

高压平板闸阀
技术参数
| 公称通径 | DN50 ~ DN1200 (2″ ~ 48″) |
| 压力等级 | Class 150 ~ 2500 / PN16 ~ PN420 |
| 适用温度 | -46℃ ~ +200℃（低温型可达 -196℃） |
| 阀体材质 | WCB、LCB、CF8、CF8M、WC6、WC9 |
| 密封等级 | API 598 / ISO 5208 / GB/T 13927 |
| 连接方式 | 法兰式、对焊式、承插焊 |
| 操作方式 | 手动、齿轮传动、电动、气动、液动 |
| 设计标准 | API 6D / API 600 / ASME B16.34 / GB/T 12234 |
应用领域
认证标准
API 6D 认证
API 6A 认证
ISO 9001
CE/PED 认证
