Forged Steel Floating Ball Valve for Industrial Shutoff
Two-piece or three-piece forged steel floating ball valve with soft- and hard-seal temperature options and stated fire-safe design for industrial pipeline isolation.
| Size Range | 1/2″–10″ (DN15–DN250) |
|---|---|
| Pressure Rating | Class 150–2500 (PN16–PN420) |
| Body Material | Carbon steel, stainless steel, alloy steel, duplex steel, nickel-based alloy, etc. |
| Connection Type | RF, BW, NPT, SW, etc. |
| Operation | Manual, pneumatic, electric, hydraulic, etc. |
Frequently Asked Questions
The original page lists two-piece and three-piece split designs.
The published ranges are -46℃ to 200℃ for soft seals and up to 425℃ for hard seals.
The valve is manufactured to API 6D and ASME B16.34.
The original page states fire-safe design and testing to API 607 and API 6FA.
Provide the medium, temperature, size, pressure, body material, seal type, connection, operation and quantity.
Product Overview

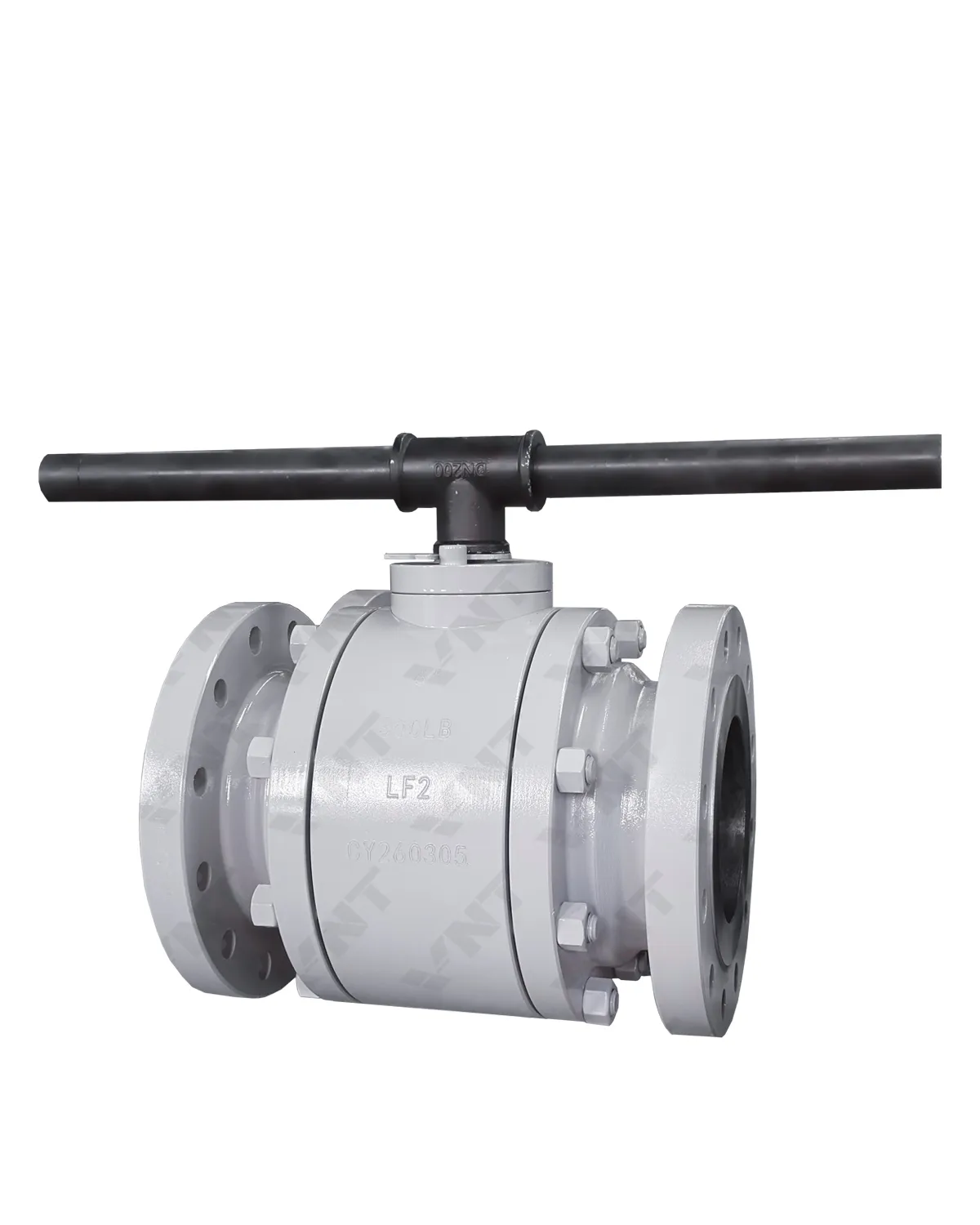

The Vornet Forged Steel Soft-Sealed Floating Ball Valve is available in two-piece and three-piece split-body designs for industrial shutoff service.
The published temperature limits are -46℃ to 200℃ for soft-seal configurations and up to 425℃ for hard-seal configurations. Final selection must match the seal, material and pressure conditions.
The valve is manufactured according to API 6D and ASME B16.34 and is stated as fire-safe designed and tested to API 607 and API 6FA.
- Split-Body Options: Two-piece and three-piece designs are listed.
- Seal Temperature Ranges: Soft and hard seal limits are separately defined.
- Fire-Safe Design: Tested to the standards stated on the original page.
- Configuration Options: Multiple connections and operating methods are available.
