Assembly Process

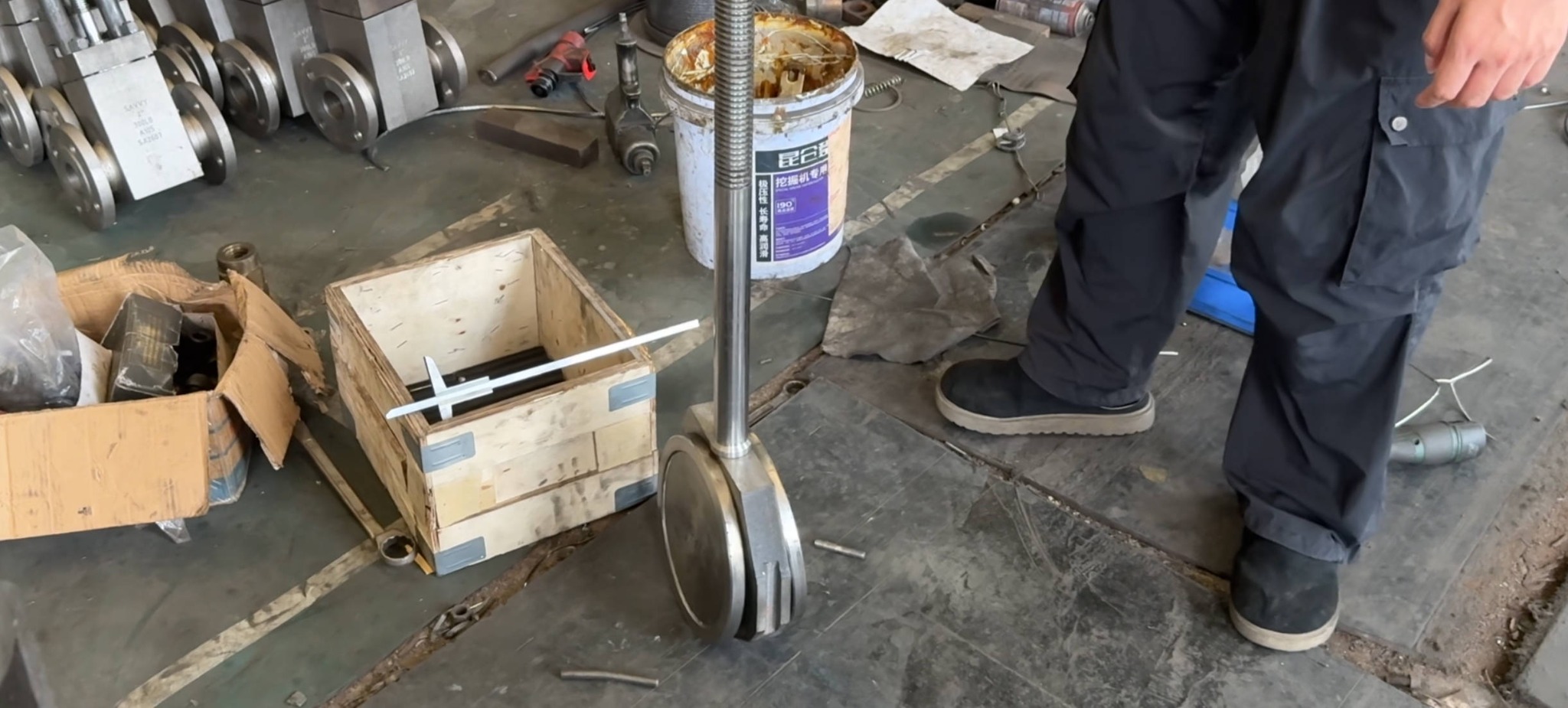

01Parallel Double-Disc Closure AssemblyParallel double-disc gate and stem assembly before installation.

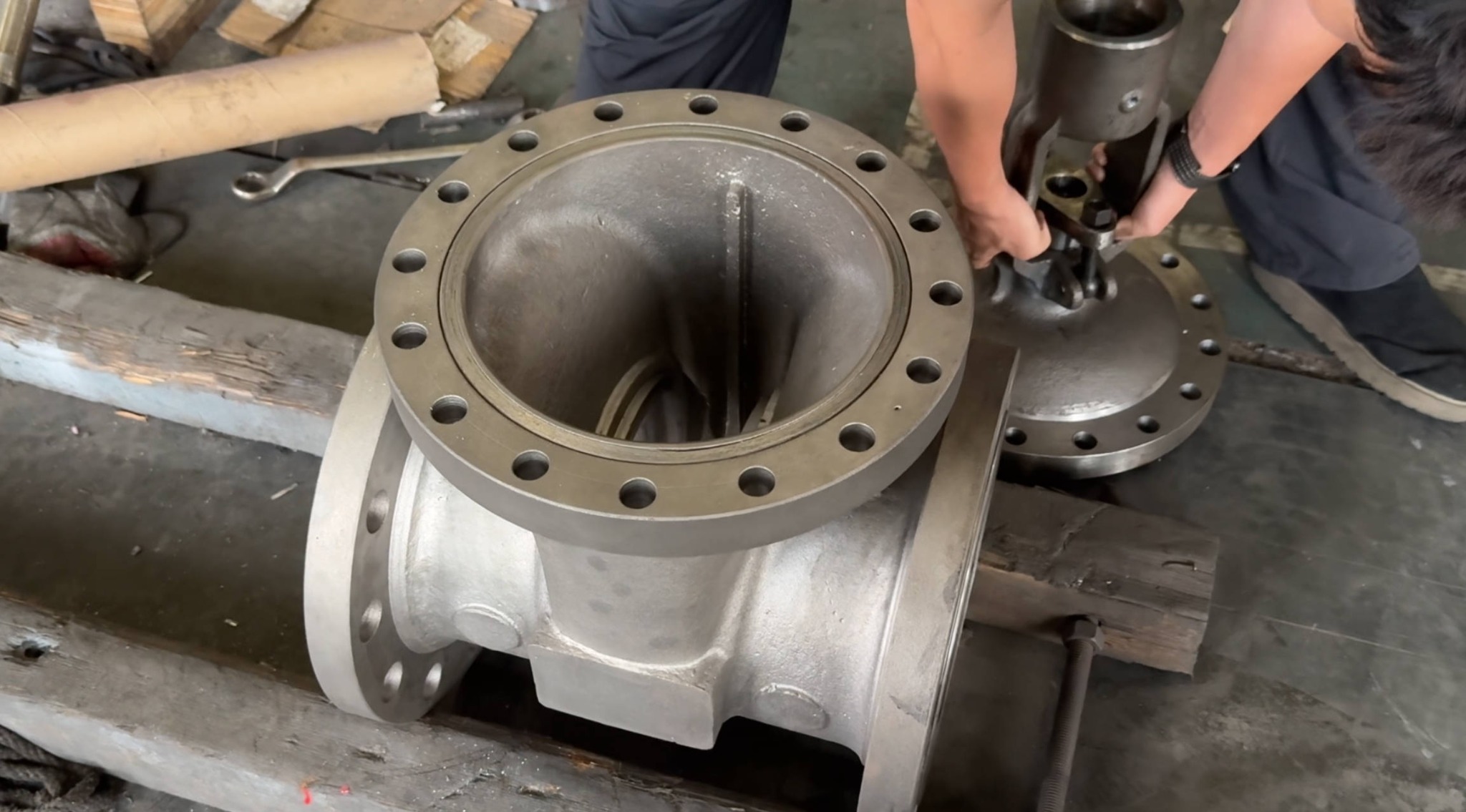

02Valve Body Internal AssemblyDouble-disc closure assembly positioned inside the valve body.

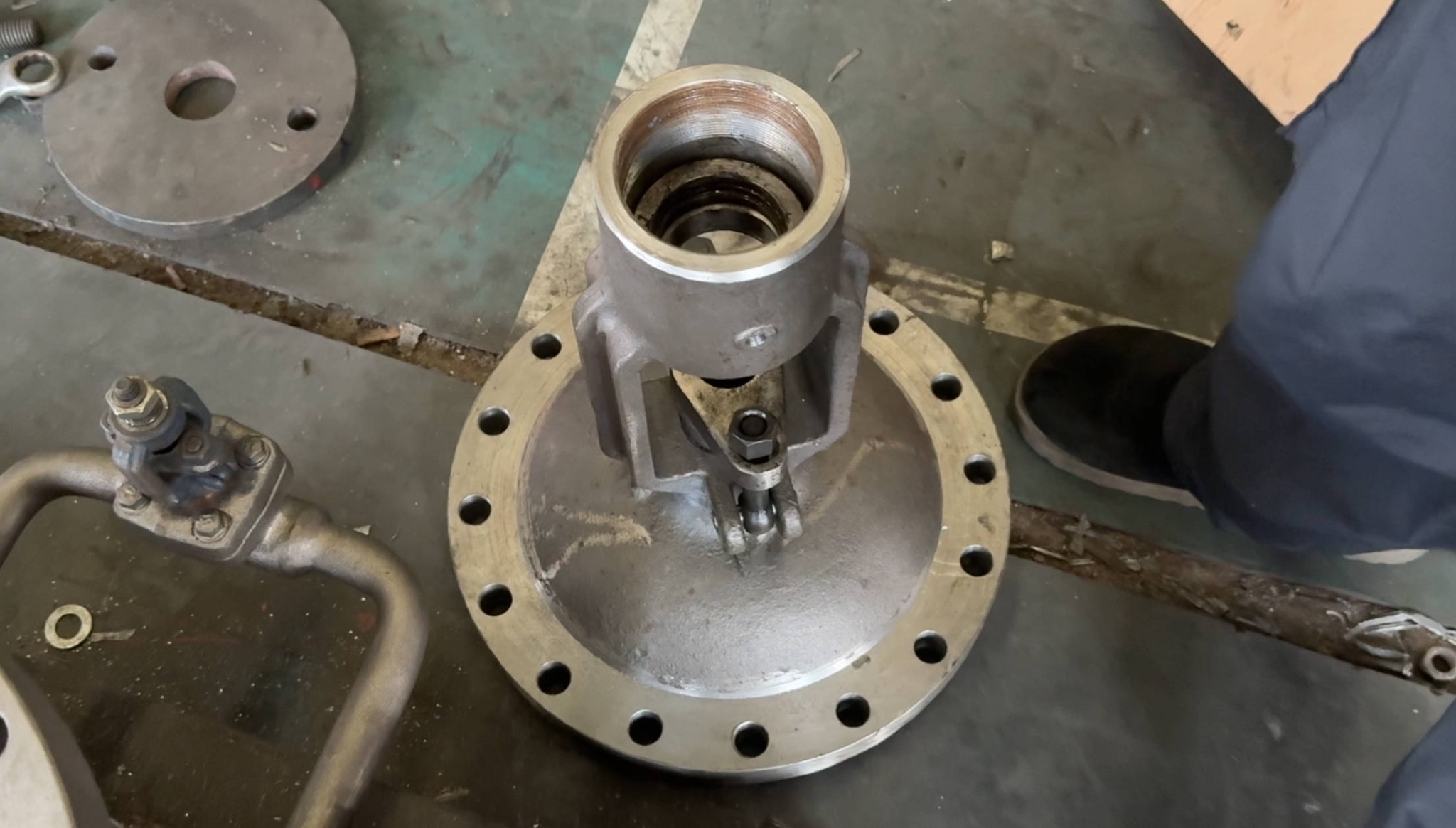

03Bonnet and Stem ConnectionBonnet, yoke and stem-area components prepared for assembly.
Assembly and Inspection Scope
This case records the workshop assembly of an 8-inch Class 300 parallel double-disc gate valve manufactured in ASTM A217 WC6. The production record covers preparation of the closure components, internal positioning, bonnet and stem assembly, and the completed valve.
The valve is designed to ASME B16.34, with pressure testing specified to API 598. Final configuration and acceptance are governed by the approved drawing, bill of materials, purchase specification and inspection plan. Photographs and video document visible production stages but do not independently establish complete performance or acceptance.
| Valve Type | Parallel double-disc gate valve |
|---|---|
| Nominal Size | 8″ |
| Pressure Rating | Class 300 |
| Material | ASTM A217 WC6 |
| Design Standard | ASME B16.34 |
| Pressure Test Standard | API 598 |
Final configuration, dimensions, end connections, trim, operating method and acceptance requirements remain subject to the approved order documents.
Items Controlled During Manufacturing and Assembly
- Valve body, bonnet and closure-component identification against approved production records.
- Positioning and alignment of the parallel double-disc closure and stem components.
- Bonnet-to-body assembly and accessible internal component positioning.
- Operating movement, marking and final assembly status against the approved drawing.
- Pressure-test scope and acceptance to the approved API 598 procedure.
Documents to Request Before Shipment
Depending on the purchase order, the release package may include the approved drawing, bill of materials, material records, dimensional and assembly inspection records, API 598 pressure-test report, marking photographs and final packing records.
Project Release Basis
Project release should reference the approved drawing, bill of materials, material records, inspection and test plan, dimensional record and API 598 pressure-test documentation.
Any requirement not stated in this case remains order-specific until confirmed in the purchase order and approved manufacturing documents.
